KILN:

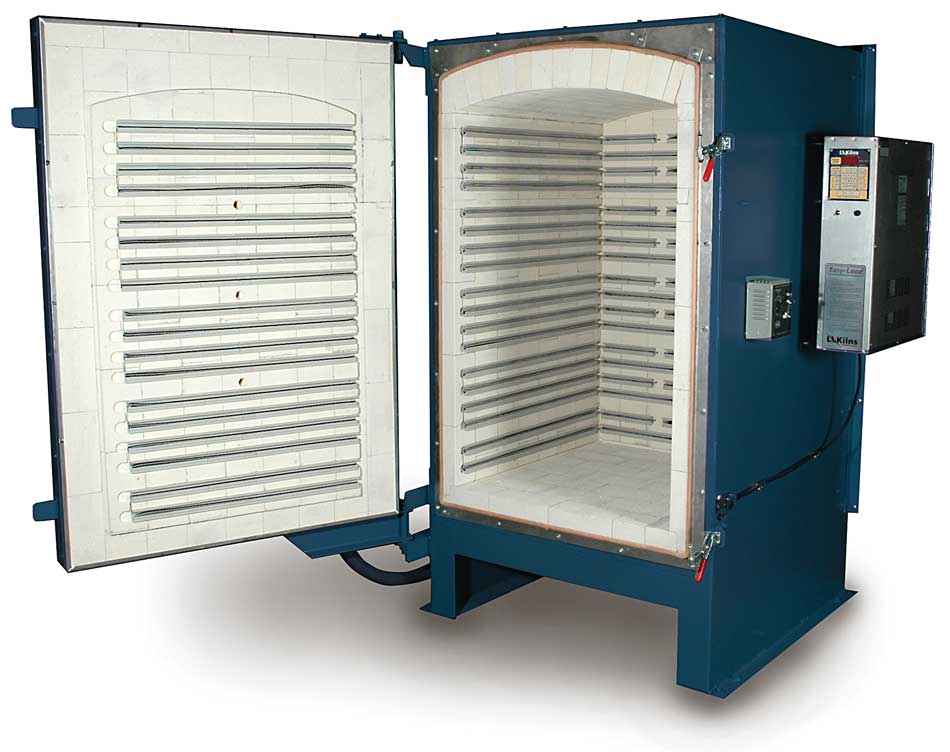

EL3048 Front-Loading Kiln
Industrial Grade Front-Loader
Crating Options and Loading Considerations
- You need a forklift to remove the kiln from the pallet. After that, you can move the kiln with a pallet jack from any side.
- All models except the EL3048 fit through a 36" door. See the General Dimension Drawing on each kiln page for details.
- Fully Crated with a special shock absorbing system for shipping
To get a quote, fill out this checklist and send to sales@hotkilns.com
KILN:
EL3048 Front-Loading Kiln
Industrial Grade Front-Loader
Crating Options and Loading Considerations
- You need a forklift to remove the kiln from the pallet. After that, you can move the kiln with a pallet jack from any side.
- All models except the EL3048 fit through a 36" door. See the General Dimension Drawing on each kiln page for details.
- Fully Crated with a special shock absorbing system for shipping
To get a quote, fill out this checklist and send to sales@hotkilns.com
KEY SPECS
Model EL3048 Easy-Load Front-Loading kiln with Multi-Program Three-Zoned Genesis Touchscreen control, hard ceramic element holders, protected thermocouples, separate attached stand, cool-firing separate side-mounted panel, multi-layered insulation (3" K23 firebrick with 2" back up mineral wool), full arch 4-1/2" thick firebrick roof made of harder K25 firebrick, side, back and door elements, door gasket, heavy gauge welded case that is powder-coated hammertone blue for corrosion resistance, manual vent system with roof plug and bottom inlet holes with sliding damper. 31" Wide x 32-1/2" Deep x 49" High (25 cubic feet). There are three thermocouples. No charge for 3-phase versions. MET-us is listed in the USA. Direct power connection. Cone 10 for all voltages.
Schedule a free consultation now by emailing industry@hotkilns.com
See the Crating Charges and Export Options
Easy-Load Shipping Quote Form
Easy-Load Installation Checklist
Easy-Load Kilns include Genesis Touchscreen Multi-Zone Control
- Part Number:
H-B-3048/00
-
Includes: Twelve 14" x 28" Rectangular Shelves (3/4" thick),
Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts,
and One Pair Heat Resistant Gloves
- Price:
$1,860.00
| SKU |
Model Number |
Watts |
Volts |
Phase |
Fuse Size |
|
| K-B-3048/21 |
EL3048-208-1Ph |
31,500 |
208 |
Single Phase |
200 Amp |
|
- Additional Information
- Amps: 151.4
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 250 mcm
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/22 |
EL3048-208-3Ph |
31,500 |
208 |
Three Phase (Delta) |
100 Amp |
|
- Additional Information
- Amps: 87.4
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 1 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/31 |
EL3048-240-1Ph |
31,500 |
240 |
Single Phase |
175 Amp |
|
- Additional Information
- Amps: 131.3
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 4/0 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/32 |
EL3048-240-3Ph |
31,500 |
240 |
Three Phase (Delta) |
100 Amp |
|
- Additional Information
- Amps: 75.8
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 1 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/62 |
EL3048-480-3Ph |
31,500 |
460-480 |
Three Phase (Delta) |
50 Amp |
|
- Additional Information
- Amps: 37.9
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 6 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/41 |
EL3048-220-1Ph |
31,500 |
220-230 |
Single Phase |
200 Amp |
|
- Additional Information
- Amps: 143.2
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 250 mcm
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/52 |
EL3048-380-3PY |
31,500 |
380 |
Three Phase (Wye) |
60 Amp |
|
- Additional Information
- Amps: 47.7
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 6 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/82 |
EL3048-400-3PY |
31,500 |
400 |
Three Phase (Wye) |
60 Amp |
|
- Additional Information
- Amps: 45.7
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 6 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
| K-B-3048/72 |
EL3048-415-3PY |
31,500 |
415 |
Three Phase (Wye) |
60 Amp |
|
- Additional Information
- Amps: 43.8
- Wire Connection: Direct Wire Connection (no cord included)
- Wire Gauge for Connection: 6 Ga
- Branch Fusing: Branch Fused
- Element Wiring:
- Max Temperature: Cone 10, 2350F, 1290C
- Certifications
- International: Made for all markets except EU
- CE: Not CE certified
- UL499: MET-us listed to UL499 Standards in the US only
- Wiring Diagram(s):
|
Control
The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.
EVEN FIRING. MAKES LOADING MORE FLEXIBLE. ADJUSTS FOR ELEMENT AGING. No need to pay extra for this important feature! Zone control on an electric kiln gives you the utmost controllable temperature uniformity. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln and automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.
PROFESSIONAL AND CLEAN LAYOUT. DaVinci Panels are wired to industrial standards with a good clean wire layout.
Durability
KEEP YOUR WORK CLEAN. Ceramic protection tubes protect the end of the thermocouple. Keeps the oxide dust from the thermocouple tip from getting into the kiln while firing.
HEAVY-DUTY. Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
F4-1/2" STRONG FIREBRICK ARCH IS BUILT THE OLD-FASHIONED WAY. Arched roofs are the time-proven way to build a long-lasting front-loading kiln
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
A BEAUTIFUL EXTERIOR FOR A BEAUTIFUL KILN. A thick welded steel case holds up better to corrosion over time.
Performance
COOL YOUR KILN WITHOUT OPENING THE DOOR. This is for cooling purposes and does not replace the Vent-Sure automatic kiln vent.
Ease of Use
STRONG AND SECURE. Two strong door latches secure the door. They are adjustable.
Support
Easy-Load and Bell-Lift Kilns have a Two-Year Commercial Limited Warranty.
LET OUR EXPERIENCE WORK FOR YOU. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We work as a team to help you get your answers and help.
LIKE HAVING A KILN LIBRARY AT YOUR FINGERTIPS. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We provide a visual parts list with photographs, part numbers, prices, and helpful information to reduce confusion when ordering parts. We also include well-vetted information and wisdom from our industry partners to ensure our customers have access to all the basic information necessary to be successful from the first firing.
Safety
EXTRA SAFETY FOR FRONT-LOADING KILNS. Shuts off power to kiln when the door is open
CERTIFIED SAFE. Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire Pottery Kilns, eQuad-Pro Professional Kilns, eFL Front-Loading Kilns, Jupiter Sectional Kilns, DaVinci Square & Rectangular Production Kilns, School-Master School Kilns, Fuego Home Craft Kilns, and Doll-Test Kilns. Easy-Load Production Front-Loading kilns are MET-Us Listed for the USA only.
Elements
APM elements increase element life in difficult applications
Thermocouples
Type S Platinum Thermocouples are recommended for high fire applications. NOTE: Price of upgrade is per each thermocouple.
Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity. NOTE: Price of upgrade is per each thermocouple.
Vents
A Critical component in the longevity of your kiln!The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.
The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with the control.
Kiln Furniture
Kiln furniture kits are the recommended set of ceramic shelves, posts, and heat-resistant gloves for each kiln model. These are for loading the work in the kiln.
These safety gloves are perfect for handling hot work when unloading a kiln.
Controls
Solid State Relays are quiet and result in longer element life because the switching time is so fast the elements don’t heat and cool as much the way the will with regular mechanical contactors. The whole system includes heat sinks, special fast acting fuses, cooling fan and extra safety relays.
Electronic High Limit Back Up Control acts as an upper limit back up to the main control. Back up contactors are also available.
Traditional 24-button Keypad control. This control can be substituted for any Genesis full-sized control.
Power
L&L's 480 volt option can include a NEMA 1 control panel
This option helps protect your control from electrical noise
Shipping/Crating
- Kiln:
67in L x 57in W x 89in H
(
170cm L x 145cm W x 226cm H
)
- Ship Weight:
2080
lbs (943 kg)
- Kiln with Furniture Kit:
67in L x 57in W x 89in H
(
170cm L x 145cm W x 226cm H
)
- Ship Weight:
2330
lbs (1057 kg)
- Kiln with Vent:
67in L x 57in W x 89in H
(
170cm L x 145cm W x 226cm H
)
- Ship Weight:
2095
lbs (950 kg)
- Kiln with Vent and Furniture Kit:
67in L x 57in W x 89in H
(
170cm L x 145cm W x 226cm H
)
- Ship Weight:
2345
lbs (1064 kg)
