CRAFT/TEST KILNS

CRAFT/TEST KILNS

Home> All L&L Kiln Series> CRAFT/TEST KILNS
KILN:

DLH11-D Test Kiln

Doll & Test Kiln

KILN:

DLH11-D Test Kiln

Doll & Test Kiln

KEY SPECS
  • Small
    (0.5 cubic feet)
  • Genesis Mini Touchscreen Control
  • Cone 6, 2230F, 1220C
MSRP: $2,105
ESTIMATED LEAD TIME: 10 to 12 Weeks
See Lead Times & Confirmation Process
WHERE TO BUY
Spec Sheet Drawing Instructions

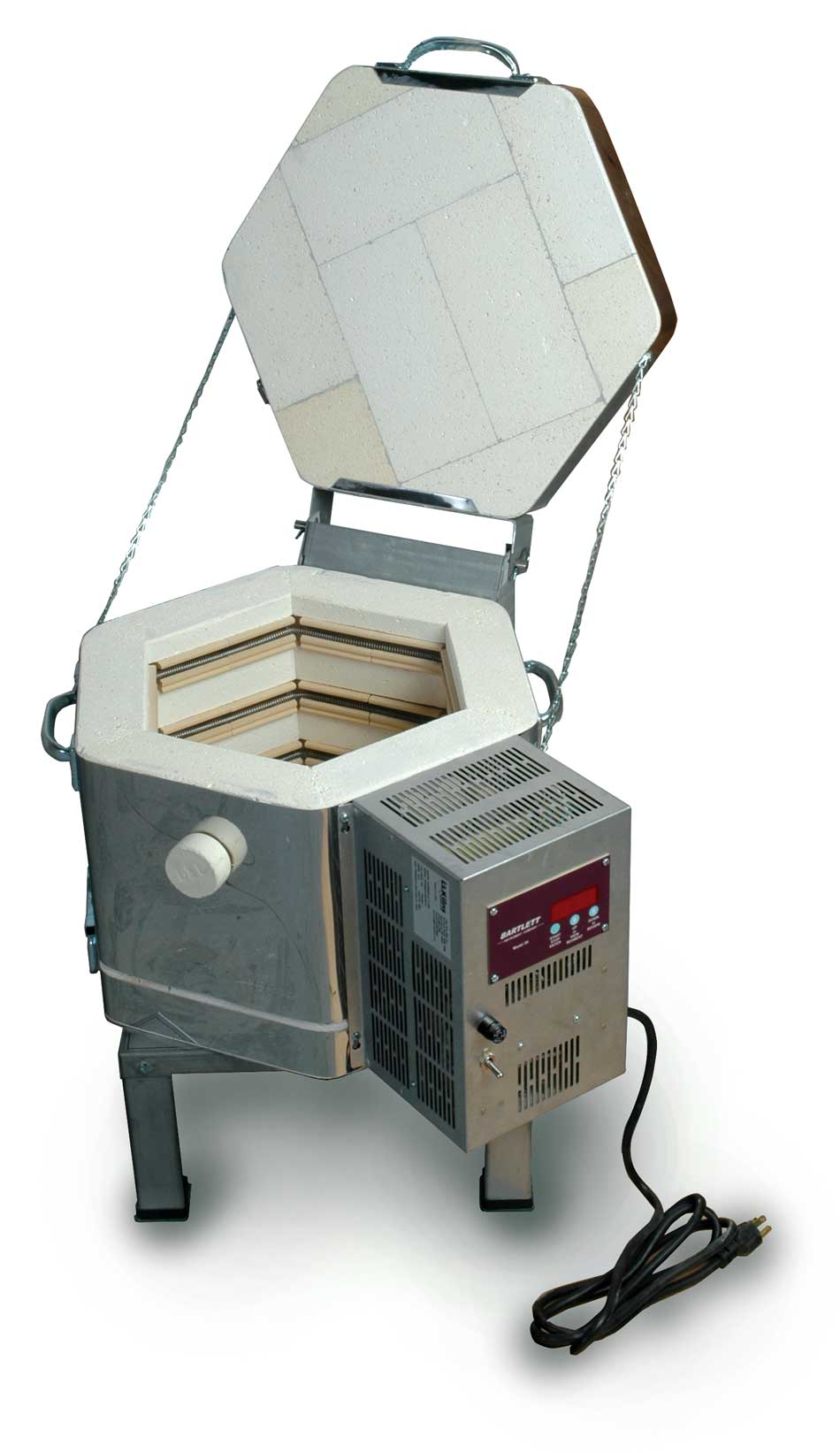

Model DLH11-D Doll/Test Kiln with a Genesis Mini Touchscreen Controller. Kiln comes with hard ceramic element holders, a protected thermocouple, a strong solid-top stand, and a solid peephole plug. 11" Diam x 9" High (0.5 cu ft). 2-1/2" K23 brick. 120 volts, 18 amps. Cone 6. Includes NEMA 5-20 plug. C-MET-us listed in the USA & Canada.

NOTE: The 120-volt versions should not be used for high production (more than once a week) to their maximum temperature range - the element life will not be acceptable under those conditions. 208-volt and 240-volt versions are rated to Cone 10 under high production conditions.

Includes Genesis-Mini Touchscreen Control

Furniture Kit for Doll/Test Kilns
  • Part Number:
    H-D-KDHL/00
  • Includes: Two 9" Full Round Shelves (3/8" thick) and Kit includes four each of 1/2", 1", 2", & 4" high 1-1/2" Square Ceramic Posts
  • Price:
    $134.00
  • Insulation:
    2-1/2" K23 Firebrick
  • Sections:
    One section
  • Inside Dimensions:
    11.00"
    Diameter x
    9.00"
    High (27.94 cm Diameter x 22.86 cm High)
  • Outside Dimensions:
    24.00"
    Wide x
    21.00"
    Deep x
    40.00"
    High (60.96 cm Wide x 53.34 cm Deep x 101.6 cm High)
  • Weight:
    95
    lbs (43 kg)
SKU Model Number Watts Volts Phase Fuse Size
K-D-DLHD/10 DLH11-D- 120V-1Ph 2,160 120 Single Phase 25 Amp
  • Additional Information
  • Amps: 18
  • Wire Connection: 5-20P Plug (20 amp, 120 volt)
  • Wire Gauge (75 deg C) for Connection: 12 Ga
  • Branch Fusing: Not Branch Fused
  • Element Wiring: Series
  • Max Temperature: Cone 6, 2230F, 1220C
  • Certifications
  • International: Made for all markets except EU
  • CE: Not CE certified
  • UL499: c-MET-us listed to UL499 Standards in the US and Canada
  • Wiring Diagram(s):

Control

Genesis Touch Screen Control
The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.

Durability

Protected Thermocouples
KEEP YOUR WORK CLEAN. Ceramic protection tubes protect the end of the thermocouple. Keeps the oxide dust from the thermocouple tip from getting into the kiln while firing.
Heavy-Duty Type K Thermocouples
HEAVY-DUTY. Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Hard Ceramic Element Channels
NO PINS TO REPLACE AND DAMAGE YOUR FIREBRICK! Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Solid Wide-View Peephole Plugs
STOP BREAKING PEEPHOLE PLUGS. Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
Full-Support Stand
FULL SUPPORT STAND. Aluminized stands are solid and corrosion-resistant. They offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
"No Crimp" Ceramic Element Connections
NO CRIMPING! EASY TO CHANGE. Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers. Wires are not crimped to element ends as in some other brands. This means you can change elements yourself without buying an expensive tool or hiring a kiln repair person.
Stainless Clips Secure Lids to Bands
PROTECT AND SUPPORT. Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
Corrosion Resistant Case
KEEP YOUR KILN LOOKING NEW. Corrosion resistant materials and methods result in a long-lasting kiln.

Ease of Use

Simple Strong Hinge with Wide-Angle Opening
ALL STAINLESS HINGE FOR SMALLER KILNS. This is used on top-loading kilns that are 8-sided or less

Support

Three-Year Limited Warranty (Standard)
THIS IS REALLY IMPORTANT WHEN YOU CONSIDER THE ELECTRONIC CONTROL. Most L&L Kilns have a three-year limited warranty.
Superior Technical Support
LET OUR EXPERIENCE WORK FOR YOU. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We work as a team to help you get your answers and help.
Visual Instruction Manual
LIKE HAVING A KILN LIBRARY AT YOUR FINGERTIPS. The combined experience at L&L Kilns in kilns, ceramics, electrical engineering, and process engineering is unsurpassed. We provide a visual parts list with photographs, part numbers, prices, and helpful information to reduce confusion when ordering parts. We also include well-vetted information and wisdom from our industry partners to ensure our customers have access to all the basic information necessary to be successful from the first firing.

Kiln Furniture

Furniture Kits
Kiln furniture kits are the recommended set of ceramic shelves, posts, and heat-resistant gloves for each kiln model. These are for loading the work in the kiln.
Safety Gloves
These safety gloves are perfect for handling hot work when unloading a kiln.

Miscellaneous

Rolling Kiln Stand
L&L's rolling kiln stand features heavy gauge galvannealed steel construction with multiple bends for extra strength, locking swivel casters, integrated vent collection box support, and guide posts for the kiln. Each size is fitted to the kiln.

Vents

Vent-Sure Downdraft Kiln Vent System
A Critical component in the longevity of your kiln!The Vent-Sure automatic kiln vent helps prevent corrosion on the inside and outside of your kiln.
Vent Control (Automatic Venting)
The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with the control.
Vent Doubler System
The Vent Doubler allows you to use one vent on two kilns.

Thermocouples

Type S Platinum Thermocouples
Type S Platinum Thermocouples are recommended for high fire applications. NOTE: Price of upgrade is per each thermocouple.
Pyrocil Metal Sheathed Industrial Thermocouples
Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity. NOTE: Price of upgrade is per each thermocouple.

Shipping/Crating

Crating for Polygonal Kilns
ISPM-15 Skids ready for export. Accessories are normally packed on top of the kiln.
  • Kiln:
    47in L x 31in W x 29in H
    (
    119cm L x 79cm W x 74cm H
    )
  • Ship Weight:
    145
    lbs (66 kg)
  • Kiln with Furniture Kit:
    47in L x 31in W x 29in H
    (
    119cm L x 79cm W x 74cm H
    )
  • Ship Weight:
    155
    lbs (70 kg)
  • Kiln with Vent:
    47in L x 31in W x 40in H
    (
    119cm L x 79cm W x 102cm H
    )
  • Ship Weight:
    160
    lbs (73 kg)
  • Kiln with Vent and Furniture Kit:
    47in L x 31in W x 40in H
    (
    119cm L x 79cm W x 102cm H
    )
  • Ship Weight:
    170
    lbs (77 kg)
  • Packaging:
    Skidded Carton with Foam-in-Place packaging
