JH Crystalline Kilns

JH Series Kilns

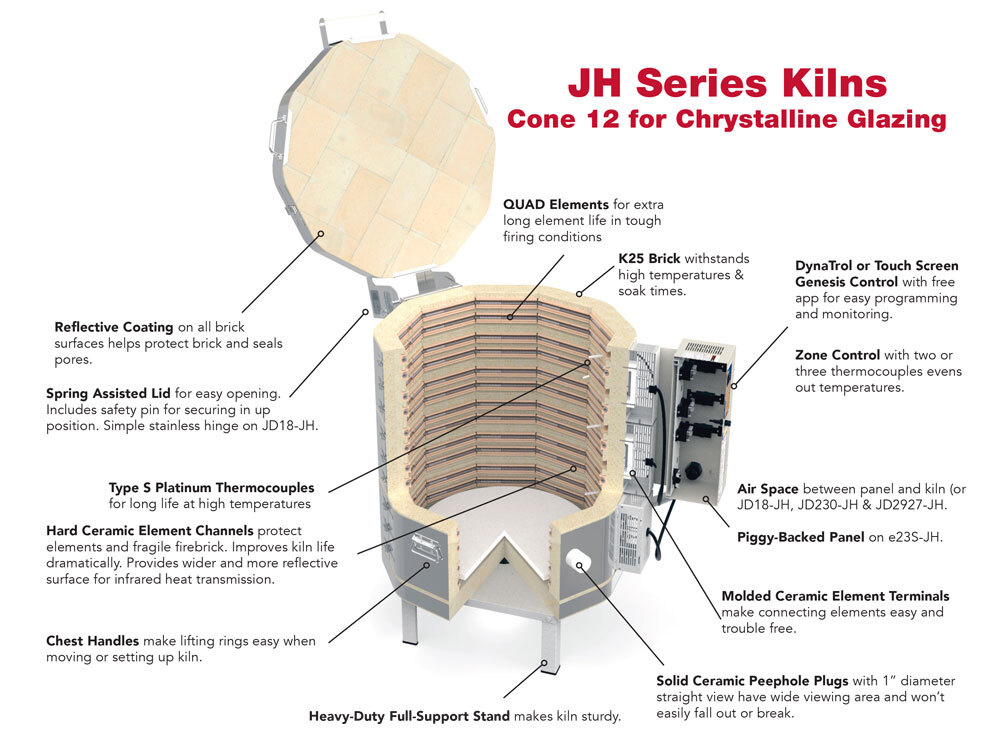

The JH kilns feature special higher temperature K25 firebrick for extra high cone 12 firing (and faster cool-down), extra power for fast heat up, "Quad" element configuration for extra element area, super heavy-duty thick elements to hold up to the special rigors of crystalline firing, minimal insulation to allow for fast cool down, and type S thermocouples for long life. Custom variations on the basic design such as more insulation, APM elements, more power, and special sizes are available by special quote or as standard options.

K25 FIREBRICK, QUAD ELEMENTS, AND TYPE S THERMOCOUPLES ARE STANDARD

Quad Elements  Type S thermocouples

$3,125
Small (2.6 cubic feet)
Top-Loading
Cone 12, 2400F, 1315C
DynaTrol Zone Control
$3,650
Medium (4.7 cubic feet)
Top-Loading
Cone 12, 2400F, 1315C
DynaTrol Zone Control
$5,775
Medium (6.7 cubic feet)
Top-Loading
Cone 12, 2400F, 1315C
DynaTrol Zone Control
$7,350
Medium-Large (10.3 cubic feet)
Top-Loading
Cone 12, 2400F, 1315C
DynaTrol Zone Control
