DAVINCI SQUARE & RECTANGULAR KILNS

DAVINCI SQUARE & RECTANGULAR KILNS

DaVinci Rectangular Kilns

Square and Rectangular Production Kilns

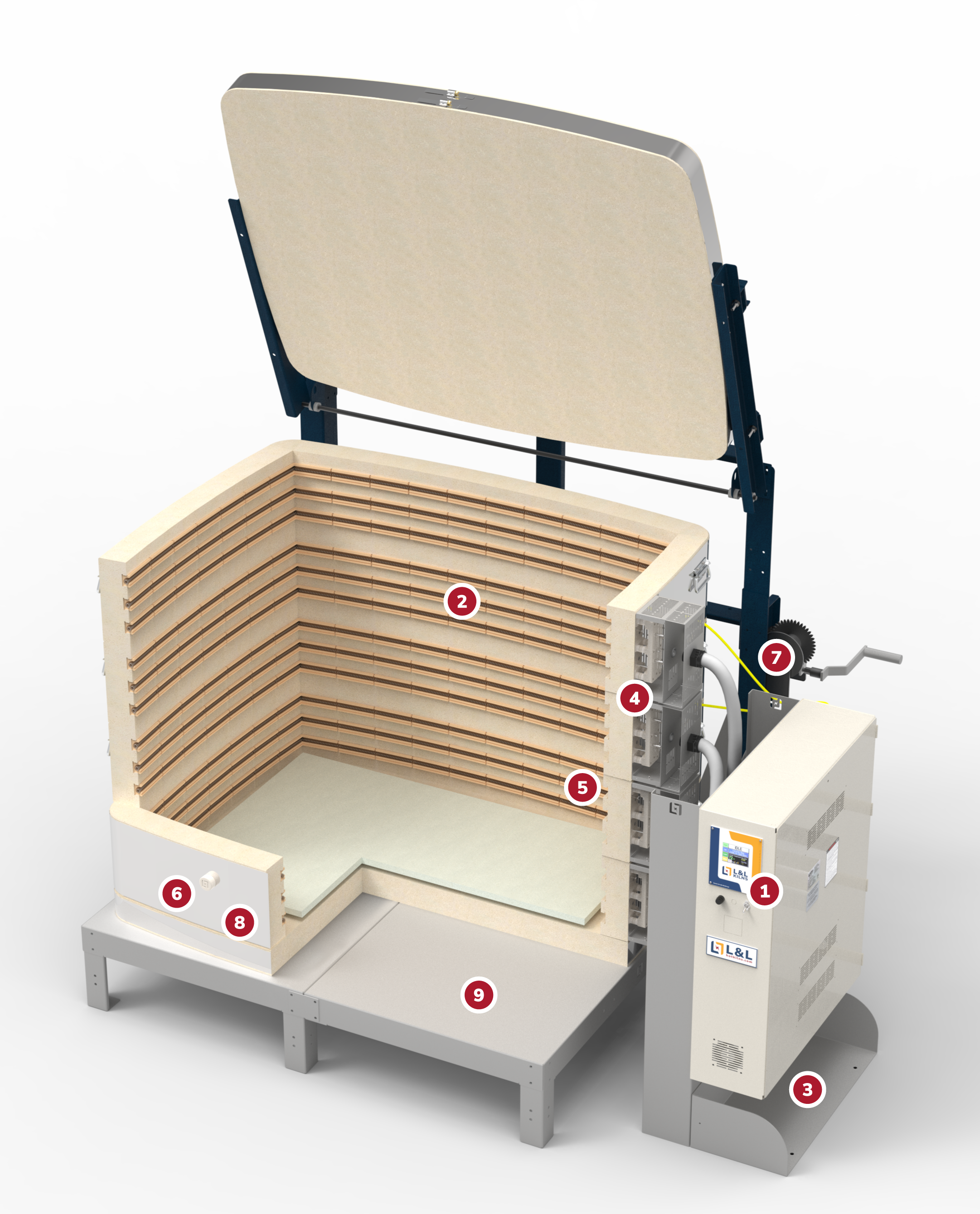

1) Genesis Touch Screen Control with a free app for easy programming and monitoring with Zone Control for even firing

2) Hard Ceramic Element Channels protect elements and fragile firebrick, improves kiln life dramatically

3) Free-standing Control Panel - easy & safe servicing, cool electronics

4) Ceramic Terminals make changing elements easy without crimping

5) Protected Thermocouple - for worry-free loading

6) Solid Ceramic Peephole Plug - no chance of falling out

7) Spring-assisted lid

8) Stainless Steel Case

9) Full Support Stand extends the life of the bottom brick

10) 480 Volt power option is available

3" brick adds strength and insulation for increased energy efficiency

Kiln sections plug into an external control panel. The kiln can be shortened or made higher easily and pulled apart to load sculptures or large objects that need to be fired. Sizes up to 43.5 cubic feet.

Models that are 27" tall or higher can be ordered with a High KW Option at no cost (see the Electrical Tab for KW and Amperage)

X3200, T2300, and T3400 models can be ordered with a powered bottom (see the Electrical Tab for KW and Amperage)





List Price: $8,125
Medium (7.3 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 70 Amp, Watt: 11,592
Lead Time: 8 to 12 Weeks
List Price: $8,975
Medium-Large (11.0 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 125 Amp, Watt: 21,252
Lead Time: 8 to 12 Weeks
List Price: $9,775
Medium-Large (11.0 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 80 Amp, Watt: 14,930
Lead Time: 8 to 12 Weeks
List Price: $10,175
Large (14.6 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 27,050
Lead Time: 8 to 12 Weeks
List Price: $11,175
Large (14.6 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 100 Amp, Watt: 19,907
Lead Time: 8 to 12 Weeks
List Price: $11,125
Large (18.3 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 175 Amp, Watt: 32,845
Lead Time: 8 to 12 Weeks
List Price: $12,300
Large (18.3 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 24,885
Lead Time: 8 to 12 Weeks
List Price: $9,325
Medium-Large (9.7 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 80 Amp, Watt: 14,196
Lead Time: 8 to 12 Weeks
List Price: $10,900
Medium-Large (14.5 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 100 Amp, Watt: 18039
Lead Time: 8 to 12 Weeks
List Price: $12,175
Medium-Large (14.5 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 26,026
Lead Time: 8 to 12 Weeks
List Price: $12,625
Large (19.4 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 24,052
Lead Time: 8 to 12 Weeks
List Price: $13,900
Large (19.4 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 175 Amp, Watt: 33,124
Lead Time: 8 to 12 Weeks
List Price: $13,975
Large (24.2 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 175 Amp, Watt: 30,065
Lead Time: 8 to 12 Weeks
List Price: $15,250
Large (24.2 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 225 Amp, Watt: 40,222
Lead Time: 8 to 12 Weeks
List Price: $9,200
Medium-Large (9.6 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 80 Amp, Watt: 15,340
Lead Time: 8 to 12 Weeks
List Price: $10,725
Medium-Large (14.4 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 100 Amp, Watt: 19,510
Lead Time: 8 to 12 Weeks
List Price: $12,250
Medium-Large (14.4 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 28,123
Lead Time: 8 to 12 Weeks
List Price: $12,350
Large (19.2 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 26,013
Lead Time: 8 to 12 Weeks
List Price: $13,875
Large (19.2 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 200 Amp, Watt: 35,793
Lead Time: 8 to 12 Weeks
List Price: $13,700
Large (24.0 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 175 Amp, Watt: 32,515
Lead Time: 8 to 12 Weeks
List Price: $15,125
Large (24.0 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 250 Amp, Watt: 43,463
Lead Time: 8 to 12 Weeks
List Price: $9,700
Medium-Large (13.8 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 100 Amp, Watt: 19,934
Lead Time: 8 to 12 Weeks
List Price: $11,625
Large (20.7 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 150 Amp, Watt: 24,936
High Powered Option
Lead Time: 8 to 12 Weeks
List Price: $13,350
Large (20.7 cubic feet)
Top-Loading
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 200 Amp, Watt: 36,546
High Powered Option
Lead Time: 8 to 12 Weeks
List Price: $13,650
Large (27.6 cubic feet)
Top-Loading, Pull-Apart
Cone 10, 2350F, 1290C
Genesis Multi-Zone Touchscreen Control
240 Volts, Single Phase
Fuse Size: 175 Amp, Watt: 33,248
Lead Time: 8 to 12 Weeks
