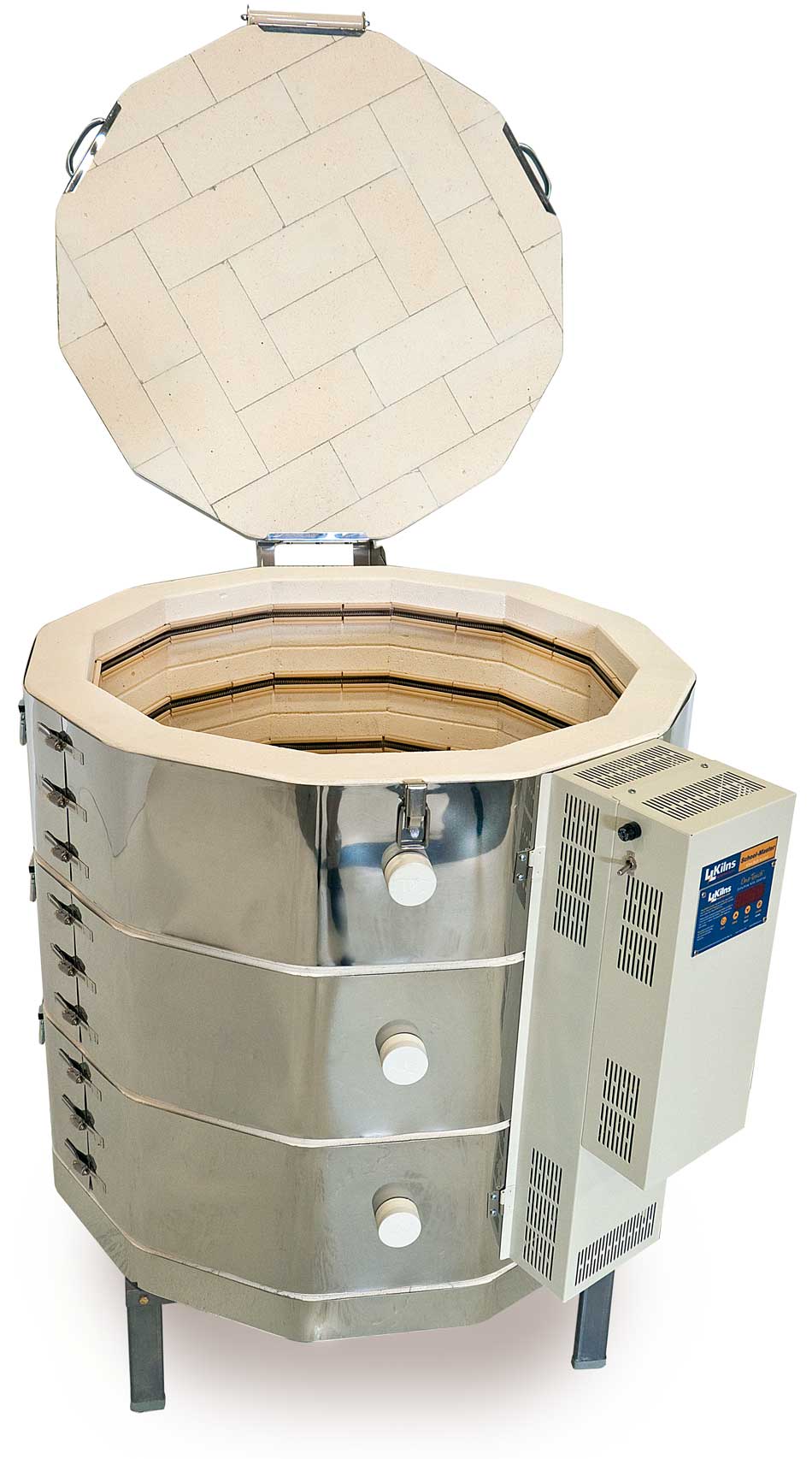

SM28T-3 School-Master K12 School Kiln with One-Touch™ Control

Home >

Questions? Ready to Order?

Call 800-750-8350 or email sales@hotkilns.com to be directed to the right distributor.

Furniture Kit

H-E-K28T/00 ($635.00)

Eight 25-1/2" Half Round Shelves, Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 5 pounds Cone 10 Kiln Wash

Features

Performance

Premium Firebrick

Durability

Corrosion Resistant Case
Hard Ceramic Element Holders for Durability
Proprietary Reflective Coating Hardens & Seals Brick
Redundant Case Clamps
Solid Super-Strong Aluminized Steel Stand
Stainless Clips Secure Lids to Bands
Thermocouple Protection Tubes
Thick 8 Gauge Thermocouples

Ease of Use

"Easy-Open, Easy-Load" Spring Hinge
One-Touch™ Intuitive Kiln Control
Solid Wide-View Peephole Plugs

Support

Superior Technical Support

Serviceability

Easy to Remove & Service Control Panel for Easy-Fire Kilns
Molded Ceramic Industrial-Grade Element Connection Blocks
Reversible Bottoms
Sectional Kiln Construction for Easy-Fire, School-Master & eQuad-Pro kilns

Safety

Listed to UL499 Standard by MET
$3200

School-Master Automatic Kiln with with simple One-Touch

Basic Information

3" (76 mm) K23 Premium Firebrick
Top-Loading
Three 9" high sections
12 sides
10.2 cubic ft (289 Liters)
435 pounds (197 Kg)
28" Diam x 27" High
71.1 cm Diam x 68.6 cm High
37" Wide x 48" Deep x 42" High
94 cm Wide x 121.9 cm Deep x 106.7 cm High

Description

Three 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. All wires are marked or color coded and attach to pull-off terminal strips.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Spring loaded "Easy-Lift" lid opens with a feather-lite touch. The strength of the hinge allows the lid to rest back away from the opening without a support arm that would get in the way of loading the kiln.
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Three total: one per section.
Limited Five Year Warranty
Download (PDF)
Download (291.38 KB, PDF)

Control Specifications

4-Button One-Touch Control
Three control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control fuse are included. More about Easy-Fire control panel.
Control box drops down perpendicular to kiln for easy access to wiring and controls. All electrical wires are color coded or numbered.
Part Number
Watts
Volts
Phase
Fuse Size
K-S-28T3/21
9980 W
208 V
Single Phase
60 Amp

Maximum Temperature

  • Max TemperatureCone 5, 2170F, 1190C

Additional Electrical Information

  • Amps48
  • Max TemperatureCone 5, 2170F, 1190C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
K-S-28T3/22
14340 W
208 V
Three Phase (Delta)
50 Amp

Maximum Temperature

  • Max TemperatureCone 6, 2230F, 1220C

Additional Electrical Information

  • Amps39.8
  • Max TemperatureCone 6, 2230F, 1220C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
K-S-28T3/41
10560 W
220-230 V
Single Phase
60 Amp

Maximum Temperature

  • Max TemperatureCone 6, 2230F, 1220C

Additional Electrical Information

  • Amps48
  • Max TemperatureCone 6, 2230F, 1220C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
K-S-28T3/31
11520 W
240 V
Single Phase
60 Amp

Maximum Temperature

  • Max TemperatureCone 6, 2230F, 1220C

Additional Electrical Information

  • Amps48
  • Max TemperatureCone 6, 2230F, 1220C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 6-50 single phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
K-S-28T3/32
16620 W
240 V
Three Phase (Delta)
50 Amp

Maximum Temperature

  • Max TemperatureCone 6, 2230F, 1220C

Additional Electrical Information

  • Amps40
  • Max TemperatureCone 6, 2230F, 1220C
  • Wire ConnectionA six foot cord with a 50 amp NEMA 15-50 three phase plug. Neutral is not used.
  • Wire Ga for Connection6 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
K-S-28T3/52
15644 W
380-415 V
Three Phase (Wye)
30 Amp

Maximum Temperature

  • Max TemperatureCone 6, 2230F, 1220C

Additional Electrical Information

  • Amps24.23
  • Max TemperatureCone 6, 2230F, 1220C
  • Wire ConnectionDirect Wire
  • Wire Ga for Connection10 Ga
  • Branch Fusing

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada

Additional Element Information

  • No of Elements
  • Element Description
  • Element PN Large Std
  • Element Wiring
$2,925.00
48" Wide x 44" Deep x 48" High
121 cm Wide x 111 cm Deep x 121 cm High
48" Wide x 44" Deep x 60" High
121 cm Wide x 111 cm Deep x 152 cm High
48" Wide x 44" Deep x 63" High
121 cm Wide x 111 cm Deep x 160 cm High
48" Wide x 44" Deep x 63" High
121 cm Wide x 111 cm Deep x 160 cm High
458 lbs (208 kg) + Kit 564 lbs (256 kg) + Vent 483 lbs (219 kg) + Kit + Vent 589 lbs (267 kg)
Skidded Carton with Foam-in-Place packaging
