Replacing Lids

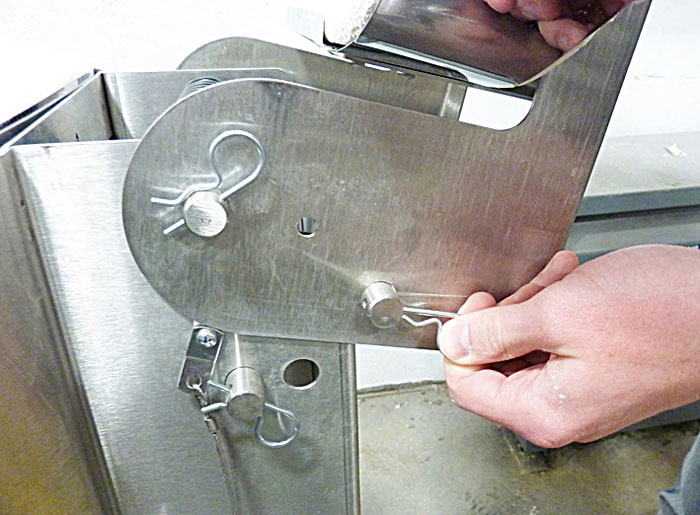

  1. Remove one of the Cotter pins from the Hinge Bar.
  2. Pull out the Hinge Bar.
  3. Unscrew the chains from the stainless steel case of the lid.
  4. Remove the Top Hinge Part from the old lid.
  5. Using the old top as a guide, install the Top Hinge Part onto the new lid.

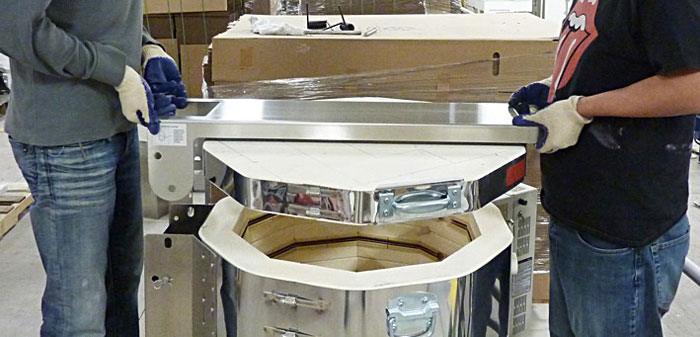

  6. Reinstall the top.
