The Hercules medium size front-loading Kilns are the best value in Front-Loaders on the Market

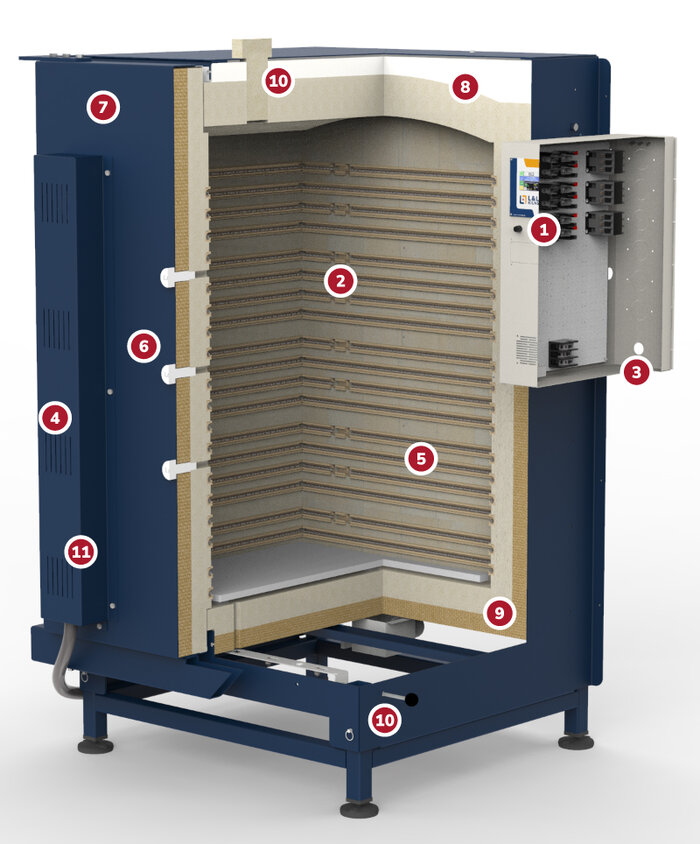

They are based on our larger Easy-Load series but are designed to be more economical while still maintaining the essential rugged features of the Easy-Load kilns. There are two popular sizes: the 24" x 24" x 24" and the 24" x 24" x 27" high model. The insulation thickness of 3" firebrick is backed up with 2" of mineral wool. The roof is a full arch made of extra-strong K25 firebrick. Door elements, door plug, door gasket, door switch, DynaTrol zone control, protected thermocouples, element holders are all standard.

See this page for Front-Loader Shipping Quote Form and Front-Loader Installation Checklist

** Note: this requires Javascript and loads large image files. **

Extra Images

Arched Roof in a Hercules Heavy-Duty Front-Loading Electric Kiln
Door Cut-Off Switch in a Hercules Heavy-Duty Front-Loading Electric Kiln
Leveling Pad in a Hercules Heavy-Duty Front-Loading Electric Kiln
Heavy-Duty Welded Case Construction in a Hercules Front-Loading Electric Kiln
Element in the Door in a Hercules Heavy-Duty Front-Loading Electric Kiln
Hercules Front-Loading Kilns
Hercules Front-Loading Kilns
Hercules Front-Loading Kilns
Hercules Front-Loading Kilns

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
EL2424-H Front-Loading Kiln 8 25" Wide x 25" Deep x 24" High
EL2427-H Front-Loading Kiln 9 25" Wide x 25" Deep x 27" High

Features

Durability

Arched roofs are the time-proven way to build a long-lasting front-loading kiln
Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
A thick welded steel case holds up better to corrosion over time.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Special brick coating hardens and seals brick for durability and cleaner operation.
Corrosion resistant materials and methods result in a long-lasting kiln.

Performance

This is for cooling purposes and does not replace the Vent-Sure automatic kiln vent.
Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Solid large non-tapered peepholes allow a wider view into the kiln.
Two strong door latches secure the door. They are adjustable.

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Most L&L Kilns have a three-year limited warranty.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Shuts off power to kiln when door is open
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch
