Easy-Fire Ceramic Pottery Kilns

e23T Electric Ceramic Kiln - the flagship of the L&L Kiln Line with angled panel

Questions? Recommendations? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

Videos

The L&L Flagship Electric Ceramic Pottery Kiln with Automatic Zone Control

Easy-Fire ceramic kilns are the industry standard professional-grade electric kiln and L&L's most popular line of kilns. They include durability features like element holders, protected thermocouples, super-strong stands and solid peephole plugs. For unparalleled performance and excellent temperature uniformity they include automatic zone control. They are designed for easy maintenance with their easy pull-down panel, easy-to-change elements and color-coded wiring.

Extra Images

Easy-Fire Ceramic Pottery Kilns
Easy-Fire Ceramic Pottery Kilns
Easy-Fire Ceramic Pottery Kilns
Easy-Fire Ceramic Pottery Kilns
Easy-Fire Ceramic Pottery Kilns
Easy-Fire Ceramic Pottery Kilns

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
e18S Pottery Kiln 2.6 17-1/2" Diam x 18" High 2-1/2" brick
e18S-3 Pottery Kiln 2.5 16-1/2" Diam x 18" High 3" brick
e18T Pottery Kiln 3.9 17-1/2" Diam x 27" High 2-1/2" brick
e18T-3 Pottery Kiln 3.7 16-1/2" Diam x 27" High 3" brick
e23S Pottery Kiln 4.7 23-3/8" Diam x 18" High 2-1/2" brick
e23S-3 Pottery Kiln 4.4 22-3/8" Diam x 18" High 3" brick
e23T Pottery Kiln 7 23-3/8" Diam x 27" High 2-1/2" brick
e23T-3 Pottery Kiln 6.7 22-3/8" Diam x 27" High 3" brick
e28S-3 Pottery Kiln 6.8 28" Diam x 18" High 3" brick
e28T-3 Pottery Kiln 10.2 28" Diam x 27" High 3" brick
e18S-3-eu Pottery Kiln 2.5 16-1/2" Diam x 18" High European Version. 3" brick.
e18T-3-eu Pottery Kiln 3.7 16-1/2" Diam x 27" High European Version. 3" brick.
e23S-3-eu Pottery Kiln 4.4 22-3/8" Diam x 18" High European Version. 3" brick.
e28S-3-eu Pottery Kiln 6.8 28" Diam x 18" High European Version. 3" brick.
e28T-3-eu Pottery Kiln 10.2 28" Diam x 27" High European Version. 3" brick.

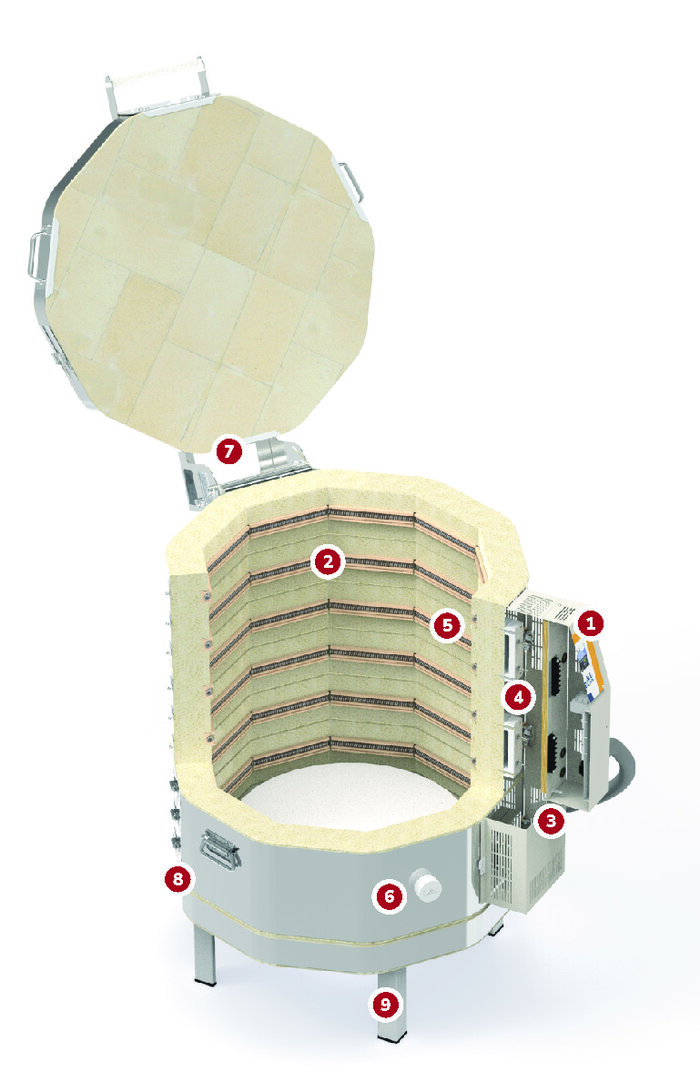

Features

Durability

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Aluminized stands are extremely strong and corrosion resistant. The offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
Industrial grade ceramic terminal blocks make changing elements easy.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Special brick coating hardens and seals brick for durability and cleaner operation.
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Performance

Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Feather-light spring hinge allows full access without a side support bar - for easy loading. Standard on all 10 and 10 sided polygonal kilns.
Angled control panel makes viewing control and programming easier. (Easy-Fire only)
Solid large non-tapered peepholes allow a wider view into the kiln.
This is used on top-loading kilns that are 8 sided or less

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Most L&L Kilns have a three-year limited warranty.

Serviceability

Remove two screws and a few plug-on wires and the panel disconnects in 5 minutes.
Sectional kiln construction makes kilns easy to move, set up and disassemble for maintenance.
The bottom can be easily reversed in case of a firing mishap.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch

PDFs

See PDF Library for International versions.
