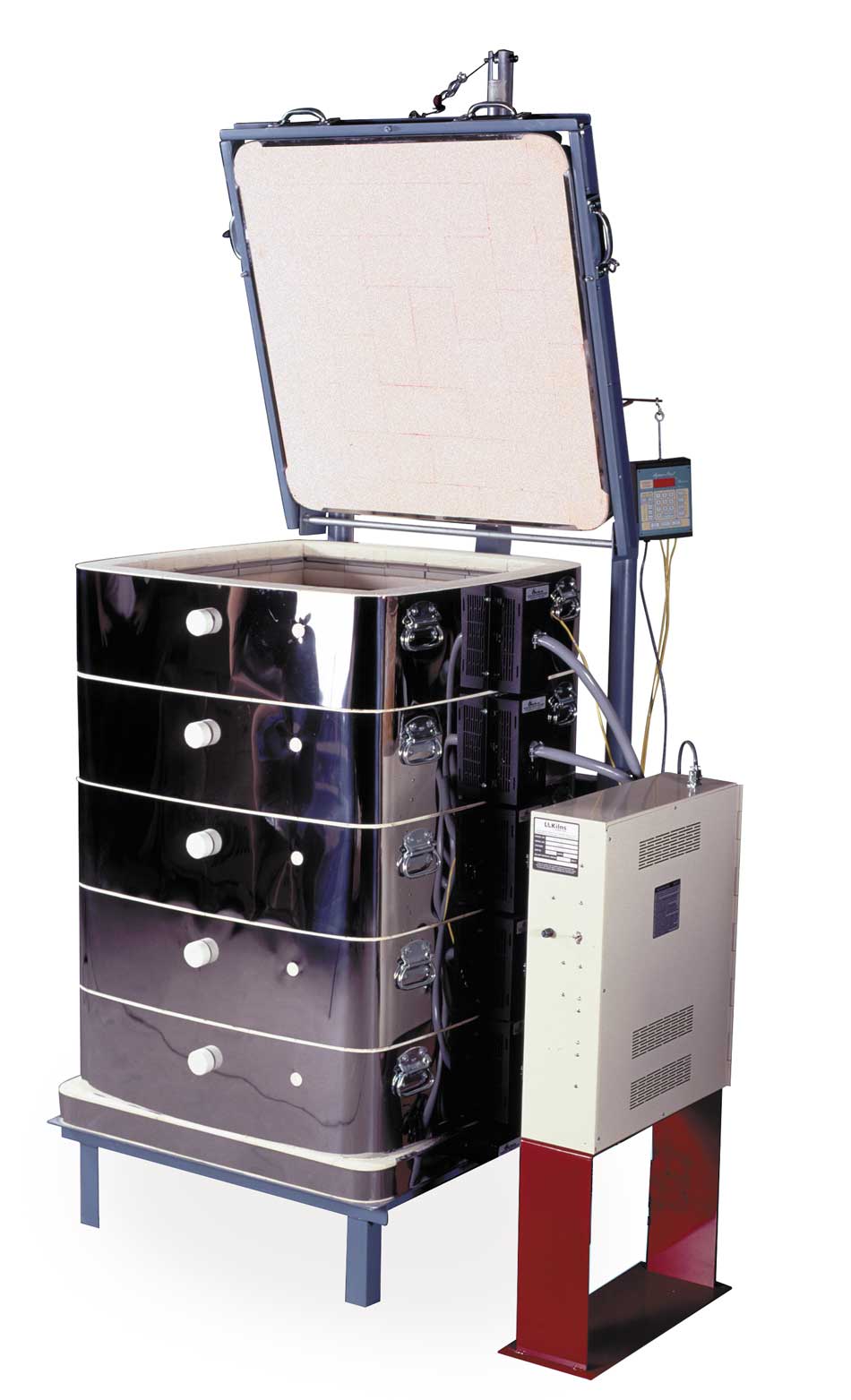

X2845 Electric Kiln

Click on image to enlarge

X2845 Electric Kiln

Furniture Kit

 H-X-K845/00 ($940.00)
Furniture Kit for X2845 DaVinci

Ten 20" X 11-1/2" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, Heat Resistant Gloves and 1 pound of Cone 10 Kiln Wash

Questions? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

XB2845-D-PB Electric Kiln

Model XB2845-D-PB Square Automatic DaVinci Kiln with a Multi-Program Three-Zoned DynaTrol control. Floor-standing control panel. Sectional and modular construction allows future expansion aided by the unique adjustable spring-loaded counterbalanced welded and powder-coated hinge system. Stand is a welded steel frame with a sheet of aluminized steel between the bottom brick and the stand. Sides are made of specially machined arched bricks for strength. Kiln comes with hard ceramic element holders, thermocouple protection tubes, and solid peephole plugs. 26-1/2" Wide x 26-1/2" Deep x 45" High (19.5 cubic feet). Extra power elements for faster heat up. Includes a powered bottom that operates from a separate adjustable circuit on the DynaTrol. 3" K23 brick. Direct power connection. C-MET-us listed in the USA & Canada. Cone 10 all voltages.

$9295

More images

This shows a powered bottom on a T3427-D-PB.
DaVinci Kilns are made from very strong arched sides which add air space for good air circulation
This is a crossection of the kiln. Notice how the sides are made of arches.
Shows how the adjustable hinge can be used on a 27” high, 36” high or even 45” high DaVinci Electric Kiln
Shows the turnbuckles that are used to adjust tension on the spring hinge. There are extension springs inside the tubes.
Shows how the lid is constructed
Notice how the dense ceramic element holder transmits and reradiates the energy of the elements
Shows how the wiring is neatly laid out.
DynaTrol features four Easy-Fire programs and six Vary-Fire user-defined programs plus zone control
The benefits of zone control
8 Gauge Type K Thermocouple shown with protection tube
Note the way we make element connections electrically tight but easy to work on. No crimping required.
Peephole with our unique straight and solid peephole plug shown
Four Chest Handles on each kiln section
Quad element option. Normally there are three rows of elements. The Quad system gives you four rows.
3" (76 mm) K23 Premium Firebrick
Top-Loading
Five 9" high sections
4 sides
19.5 cubic ft (552 Liters)
1000 pounds (452 Kg)
26-1/2" Wide x 26-1/2" Deep x 45" High
67.3 cm Wide x 67.3 cm Deep x 114.3 cm High
45" Wide X 43" Deep X 59" High
114.3 cm Wide X 109.2 cm Deep X 149.9 cm High
Download (PDF)
Part Number
Watts
Volts
Phase
Fuse Size
K-X-284P/31
32844 W
240 V
Single Phase
175 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/32
32844 W
240 V
Three Phase (Delta)
90 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/21
32844 W
208 V
Single Phase
200 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/22
32844 W
208 V
Three Phase (Delta)
125 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/62
32844 W
460-480 V
Three Phase (Delta)

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for USA market only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/41
32844 W
220-230 V
Single Phase
200 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

K-X-284P/52
32844 W
380-415 V
Three Phase (Wye)

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for non-USA markets only
  • CENot CE certified
  • UL499c-MET-us listed to UL499 Standards in the US and Canada
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

Five 9” high sections stack on top of each other. The stand is separate. The counterbalanced hinge gets attached to the kiln and floor for stability. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. Unique shallow side arches create super-strong sides and allow for plenty of space for air circulation around kiln shelves.
Welded angle iron counterbalance system with springs. Safety latch included. Welded angle iron with leveling bolts.
The welded angle-iron stand is separate but attached to the case. It includes leveling bolts and holes for anchoring the kiln to the floor. The angle-iron frame is covered with a layer of aluminized steel which the bottom of the kiln sits on.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Five total: one per section.
Three control zones with three separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. DynaTrol is in a removable handheld box. Entire control box is removable.

Durability

Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.
Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Industrial grade ceramic terminal blocks make changing elements easy.
Special brick coating hardens and seals brick for durability and cleaner operation.
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
A unique welded rigid frame supports the entire lid on a DaVinci kiln.
Arched sides on DaVinci kilns are very strong and promote good air circulation
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.

Performance

Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Solid large non-tapered peepholes allow a wider view into the kiln.
Even the largest DaVinci lids can easily be lifted by one person.

Support

Most L&L Kilns have a three-year limited warranty.
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Serviceability

DaVinci Panels are wired to industrial standards with good clean wire layout.
The control panel is mounted on a stand away form the kiln.
The bottom can be easily reversed in case of a firing mishap.
Sectional kiln construction make DaVinci kilns easy to move, set up and disassemble for maintenance.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch

Elements

The combination of 1/2" diameter element coils, the doubled surface area of the Quad element design, and superior heat transfer of L&L's patented ceramic element holders, make this the best element system in the world today.

APM elements increase element life in difficult applications

Thermocouples

Type S Platinum Thermocouples are recommended for high fire applications

Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity.

Vents

The L&L Vent-Sure Kiln Vent is the most powerful downdraft kiln vent on the market today. That means you have more flexibility in the installation.

The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the DynaTrol (or Genesis).

Kiln Furniture

Kiln furniture kits are the recommended set of ceramic shelves, posts and kiln wash that go with each kiln model. These are for loading the work in the kiln.

Cone 10 Kiln wash is used to coat shelves to prevent sticking of glaze.

These safety gloves are perfect for handling hot work when unloading a kiln.

Controls

The new Genesis control from Bartlett includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol.

Control, monitor and record data for up to 10 kilns from your computer for a one-time price.

Electronic High Limit Back Up Control acts as an upper limit back up to the main control.

The Eurotherm 2604 is an indutrial-grade PID control with two or three zone cabability built in.

Power

L&L's 480 volt option can include a NEMA 1 control panel

This option helps protect your control from electrical noise

Powered bottoms increase power and can aid uniformity in large kilns

Miscellaneous

This special Seismic Kiln Rack and Brace is designed to prevent a kiln from falling over during an earthquake.

Load your DaVinci kiln from all four sides. Available on T3400 and X3200 Series.

X3200, T2300 and T3400 DaVinci kilns can be ordered with a 4" thick ceramic fiber folded/formed module lid.

Unpowered rings can extend the height of our DaVinci kilns.

48" x 44" x 48" High and 48" x 44" x 36" High and 48" x 44" x 84" High
121 cm x 111 cm x 121 cma High and 121 cm x 111 cm x 91 cma High and 121 cm x 111 cm x 213 High
48" x 44" x 48" High and 48" x 44" x 36" High and 48" x 44" x 84" High
121 cm x 111 cm x 121 cm High and 121 cm x 111 cm x 91 cm High and 121 cm x 111 cm x 213 cm High
48" x 44" x 48" High and 48" x 44" x 36" High and 48" x 44" x 84" High
121 cm x 111 cm x 121 cm High and 121 cm x 111 cm x 91 cm High and 121 cm x 111 cm x 213 cm High
48" x 44" x 48" High and 48" x 44" x 36" High and 48" x 44" x 84" High
121 cm x 111 cm x 121 cm High and 121 cm x 111 cm x 91 cm High and 121 cm x 111 cm x 213 cm High
1050 lbs (476 kg) + Kit 1220 lbs (553 kg) + Vent 1075 lbs (488 kg) + Kit + Vent 1245 lbs (565 kg)
Three Wooden Crates
