Thick 8 Gauge Thermocouples

user warning: Expression #1 of ORDER BY clause is not in SELECT list, references column 'hotkilns_live.n.created' which is not in SELECT list; this is incompatible with DISTINCT query: SELECT DISTINCT n.nid, n.vid, n.title FROM content_field_videos_features nr INNER JOIN node n ON n.vid = nr.vid AND n.status = 1 INNER JOIN node_access na ON na.nid = n.nid WHERE (na.grant_view >= 1 AND ((na.gid = 0 AND na.realm = 'all') OR (na.gid = 0 AND na.realm = 'content_access_author') OR (na.gid = 1 AND na.realm = 'content_access_rid'))) AND ( nr.field_videos_features_nid = 238 )ORDER BY n.created DESC in /home/hotkilns/public_html/sites/all/modules/nodereferrer/nodereferrer.module on line 428.

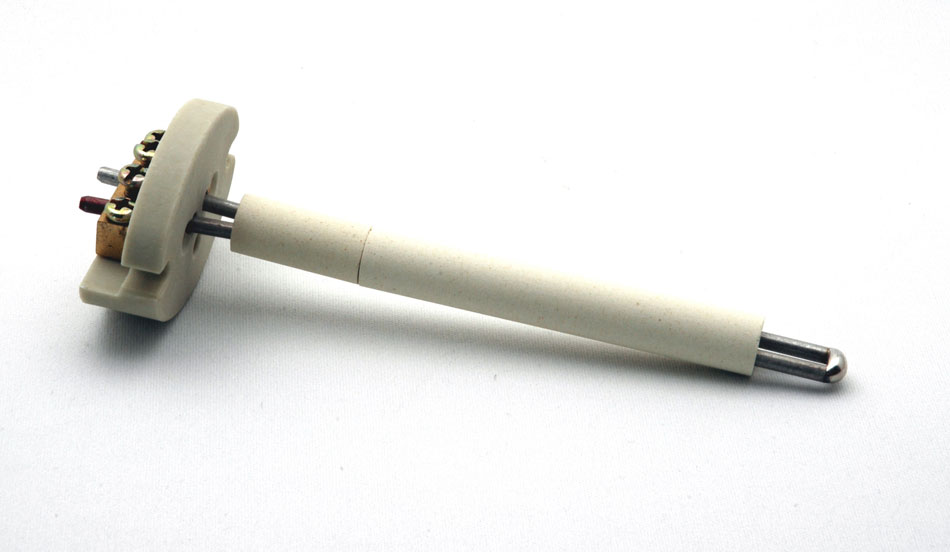

Special Limit of Error Type 8 Gauge Type K Thermocouples

  • Special Limit of Error to ANSI MC96.1 specifications is used.
  • The standard thermocouples used for all L&L Automatic kilns are 8 gauge Type K thermocouples. Element connection wire and all terminations are properly calibrated for the thermocouples to keep them accurate.
  • 8 Gauge is the thickness of 0.1285
    (about 1/8" thick) - which means they can withstand quite a bit of abuse and the natural corrosion that takes place in a kiln.
  • Most L&L automatic kiln also include a ceramic protection tube to further protect the thermocouple.

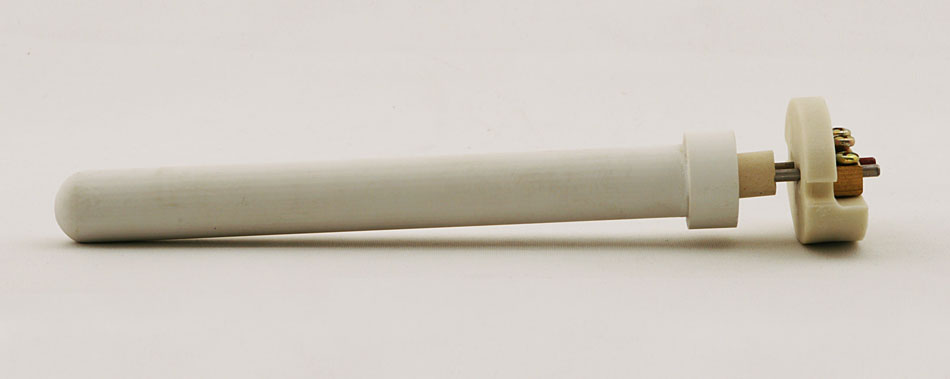

Thermocouple with protection tube

Thermocouple Options

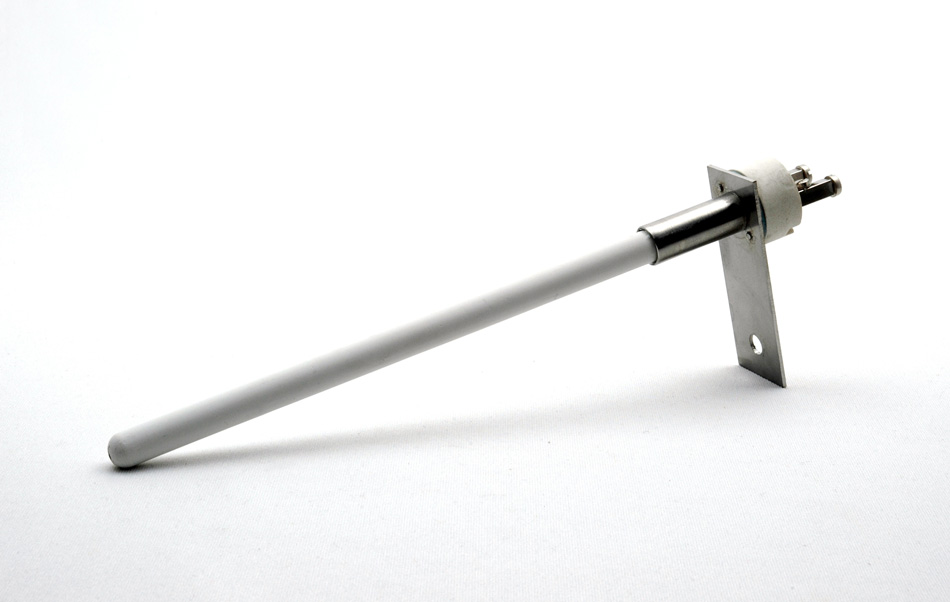

Optional Type S thermocouple

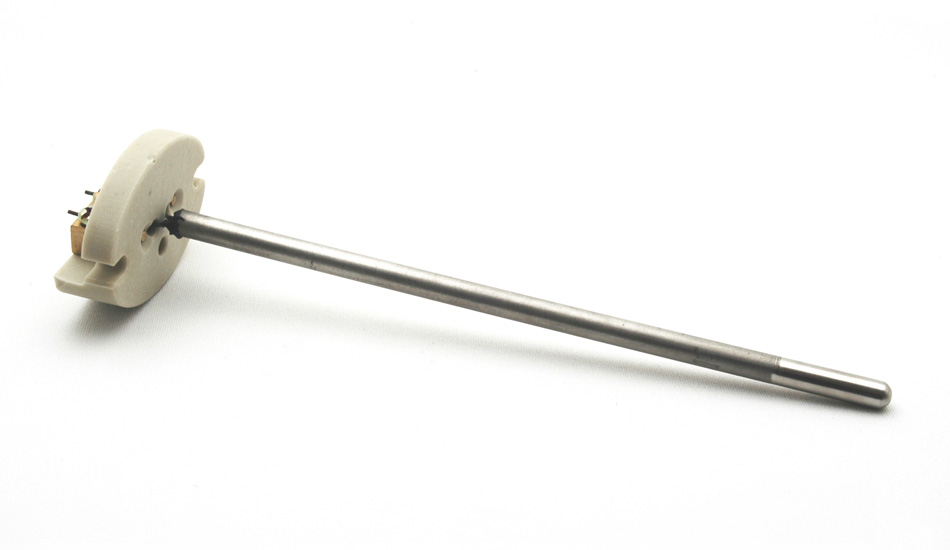

Optional Pyrocil thermocouple


Extra Images

Thick 8 Gauge Thermocouples
