TB3445-D-PB DaVinci Square/Rectangular Large Production Kilns
Questions? Ready to Order?
Call 800-750-8350 or
Send an Email to be directed to the right distributor.
This shows a NEMA1 control panel which is an option.
Furniture Kit
H-T-K545/00 ($1,675.00)
Fifteen 28" X 14" Rectangular Shelves, Eighteen Each 1/2", 1", 2", 4", 6", and 8" Square Posts, Heat resistant gloves, 5 pounds cone 10 kiln wash
Features
Performance
Durability
Ease of Use
Support
Serviceability
Safety

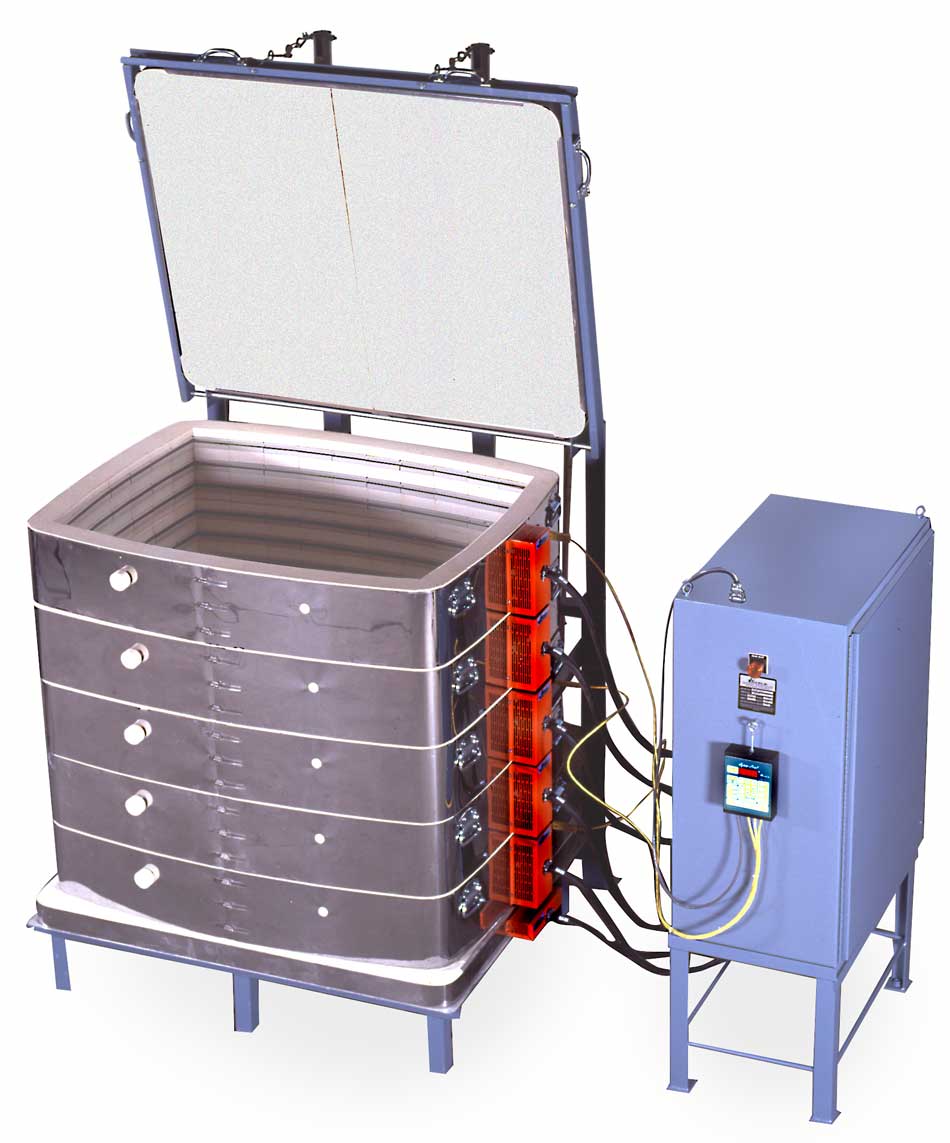

Rectangular Automatic DaVinci Kiln with 3" brick, counterbalanced lid, floor-standing control panel and handheld Multi-Program Zoned DynaTrol control. Extra KW for faster heat-up. Power bottom.
Basic Information
3" (76 mm) K23 Premium Firebrick
Top-Loading
Five 9" high sections
4 sides
34.5 cubic ft (977 Liters)
1590 pounds (722 Kg)
43-1/2" Wide x 30-1/2" Deep x 45" High
110.5 cm Wide x 77.5 cm Deep x 114.3 cm High
110.5 cm Wide x 77.5 cm Deep x 114.3 cm High
62" Wide X 49" Deep X 59" High
157.5 cm Wide X 124.5 cm Deep X 149.9 cm High
157.5 cm Wide X 124.5 cm Deep X 149.9 cm High
Description
Five 9” high sections stack on top of each other. The stand is separate. The counterbalanced hinge gets attached to the kiln and floor for stability. The kiln is very easy to assemble and disassemble. The kiln sections plug into the separate control panel. More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. Unique shallow side arches create super-strong sides and allow for plenty of space for air circulation around kiln shelves.
Welded angle iron counterbalance system with springs. Safety latch included. Welded angle iron with leveling bolts.
The welded angle-iron stand is separate but attached to the case. It includes leveling bolts and holes for anchoring the kiln to the floor. The angle-iron frame is covered with a layer of aluminized steel which the bottom of the kiln sits on.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Five total: one per section.
Download (PDF)
Download (310.12 KB, PDF)
Control Specifications
Three control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
Floor-mount Plug-in.
Control box cover is hinged for easy access to inside of control box. DynaTrol is in a removable handheld box. Entire control box is removable.
Part Number
Watts
Volts
Phase
Fuse Size
K-T-344W/21
56483 W
208 V
Single Phase
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps271.6
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/22
56483 W
208 V
Three Phase (Delta)
225 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps166
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection350 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/41
56483 W
220-230 V
Single Phase
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps256.7
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/31
56483 W
240 V
Single Phase
300 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps235.3
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection500 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/32
56483 W
240 V
Three Phase (Delta)
200 Amp
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps143.9
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection250 mcm
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/52
56483 W
380-415 V
Three Phase (Wye)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for non-USA markets only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$10,735.00
K-T-344W/62
56483 W
460-480 V
Three Phase (Delta)
Maximum Temperature
- Max TemperatureCone 10, 2350F, 1290C
Additional Electrical Information
- Amps
- Max TemperatureCone 10, 2350F, 1290C
- Wire ConnectionDirect Wire
- Wire Ga for Connection
- Branch FusingBranch Fused
Certifications and Markets
- InternationalMade for USA market only
- CENot CE certified
- UL499c-MET-us listed to UL499 Standards in the US and Canada
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$11,985.00
65" x 48" x 48" High and 65" x 48" x 36" High and 62" x 48" x 84" High
165 cm x 121 cm x 121 cma High and 165 cm x 121 cm x 91 cma High and 157 cm x 121 cm x 213 High
165 cm x 121 cm x 121 cma High and 165 cm x 121 cm x 91 cma High and 157 cm x 121 cm x 213 High
65" x 48" x 48" High and 65" x 48" x 36" High and 65" x 48" x 84" High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 165 cm x 121 cm x 213 cm High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 165 cm x 121 cm x 213 cm High
65" x 48" x 48" High and 65" x 48" x 36" High and 62" x 48" x 84" High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 157 cm x 121 cm x 213 cm High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 157 cm x 121 cm x 213 cm High
65" x 48" x 48" High and 65" x 48" x 36" High and 62" x 48" x 84" High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 157 cm x 121 cm x 213 cm High
165 cm x 121 cm x 121 cm High and 165 cm x 121 cm x 91 cm High and 157 cm x 121 cm x 213 cm High
1675 lbs (760 kg)
+ Kit 2050 lbs (930 kg)
+ Vent 1700 lbs (771 kg)
+ Kit + Vent 2075 lbs (941 kg)
Three Wooden Crates
