R1618 Fuego & Robin - 220V International Hobby Kilns
Questions? Ready to Order?
Call 800-750-8350 or email sales@hotkilns.com to be directed to the right distributor.
Furniture Kit
H-L-KLB0/30 ($215.00)
One 15" Full Round Shelf and Four 15" Half Round Shelves, Four each of 1", 2", 4", & 6" High 1" Triangular Posts, 1 pound Cone 10 Kiln Wash
Features
Performance
Durability
Ease of Use
Support
Serviceability

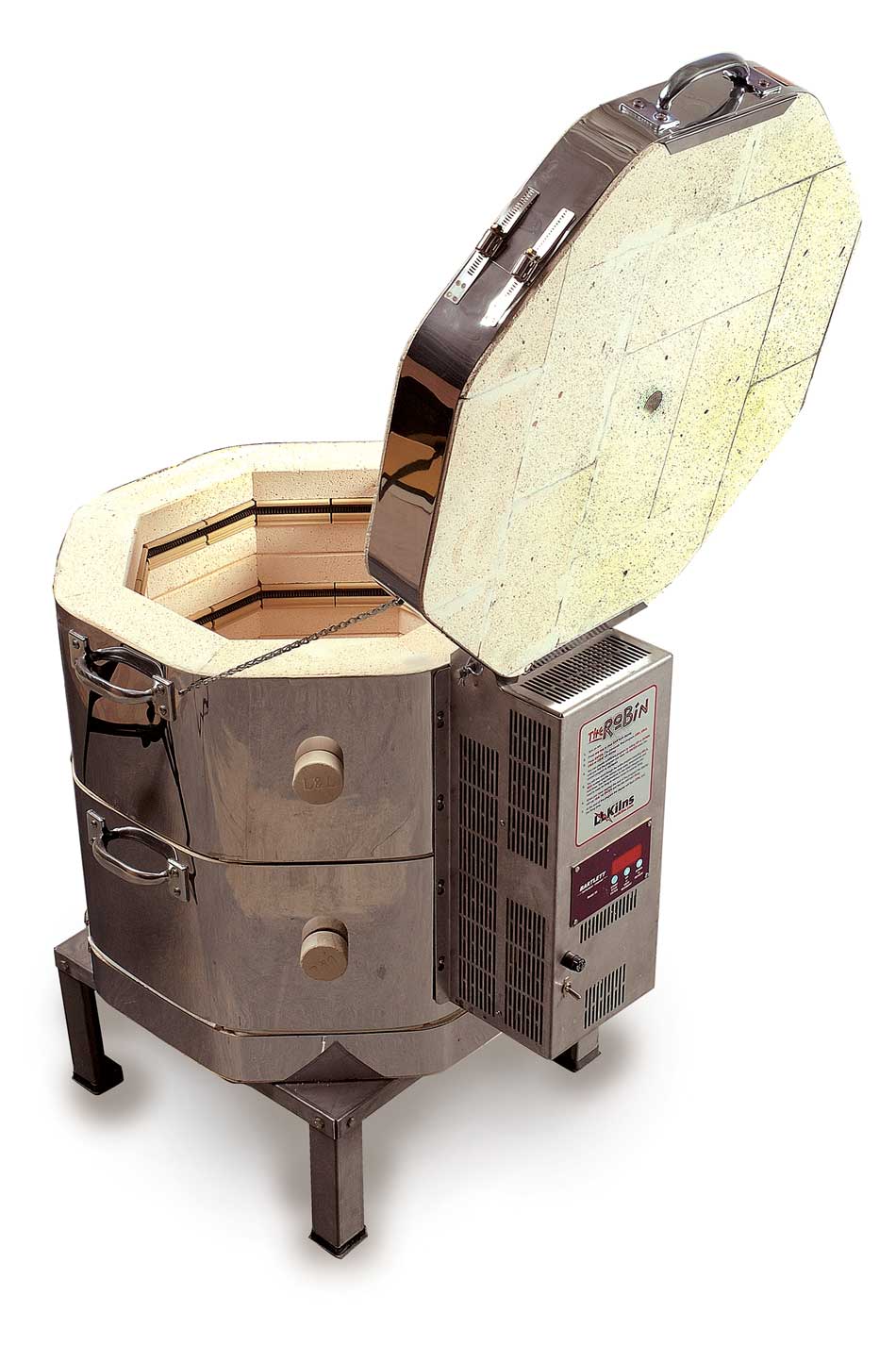

Robin Hobby Kiln, 70 liter, low fire, for household voltage
Basic Information
3" (76mm) K23 Premium Firebrick backed up with 1/8" (3 mm) Non-RCF Ceramic Fiber Paper
Top-Loading
Two 9" high sections
8 sides
2.5 cubic ft (71 Liters)
195 pounds (87 Kg)
16-1/2" Diam x 18" High
41.9 cm Diam x 45.7 cm High
41.9 cm Diam x 45.7 cm High
26" Wide x 32" Deep x 31" High
66 cm Wide x 81.3 cm Deep x 78.7 cm High
66 cm Wide x 81.3 cm Deep x 78.7 cm High
Description
Two 9” high sections stack on top of each other. The element connection box/control box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble.
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Four total: one per section plus two in the lid for ventilation.
Control Specifications
Bartlett 3-Button
Two control zones with two separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on panel
One box.
Controls are mounted in a removable box.
Part Number
Watts
Volts
Phase
Fuse Size
K-F-1618/4E
3450 W
220-230 V
Single Phase
Maximum Temperature
- Max Temperature2000F, 1090C
Additional Electrical Information
- Amps15
- Max Temperature2000F, 1090C
- Wire ConnectionHousehold current plug and cord specific for the country where the kiln is shipped
- Wire Ga for Connection
- Branch Fusing
Certifications and Markets
- InternationalMade for EU market
- CECertified to CE Directives
- UL499Not listed to UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$0.00
K-F-1618/41
3000 W
220-230 V
Single Phase
Maximum Temperature
- Max Temperature2000F, 1090C
Additional Electrical Information
- Amps13
- Max Temperature2000F, 1090C
- Wire ConnectionHousehold current plug and cord specific for the country where the kiln is shipped
- Wire Ga for Connection
- Branch Fusing
Certifications and Markets
- InternationalMade for EU market
- CECertified to CE Directives
- UL499Not listed to UL499
Additional Element Information
- No of Elements
- Element Description
- Element PN Large Std
- Element Wiring
$0.00
36" Wide x 36" Deep x 38" High
91 cm Wide x 91 cm Deep x 96 cm High
91 cm Wide x 91 cm Deep x 96 cm High
203 lbs (92 kg)
+ Kit lbs ( kg)
+ Vent lbs ( kg)
+ Kit + Vent 215 lbs ( kg)
Skidded Carton with Foam-in-Place packaging
