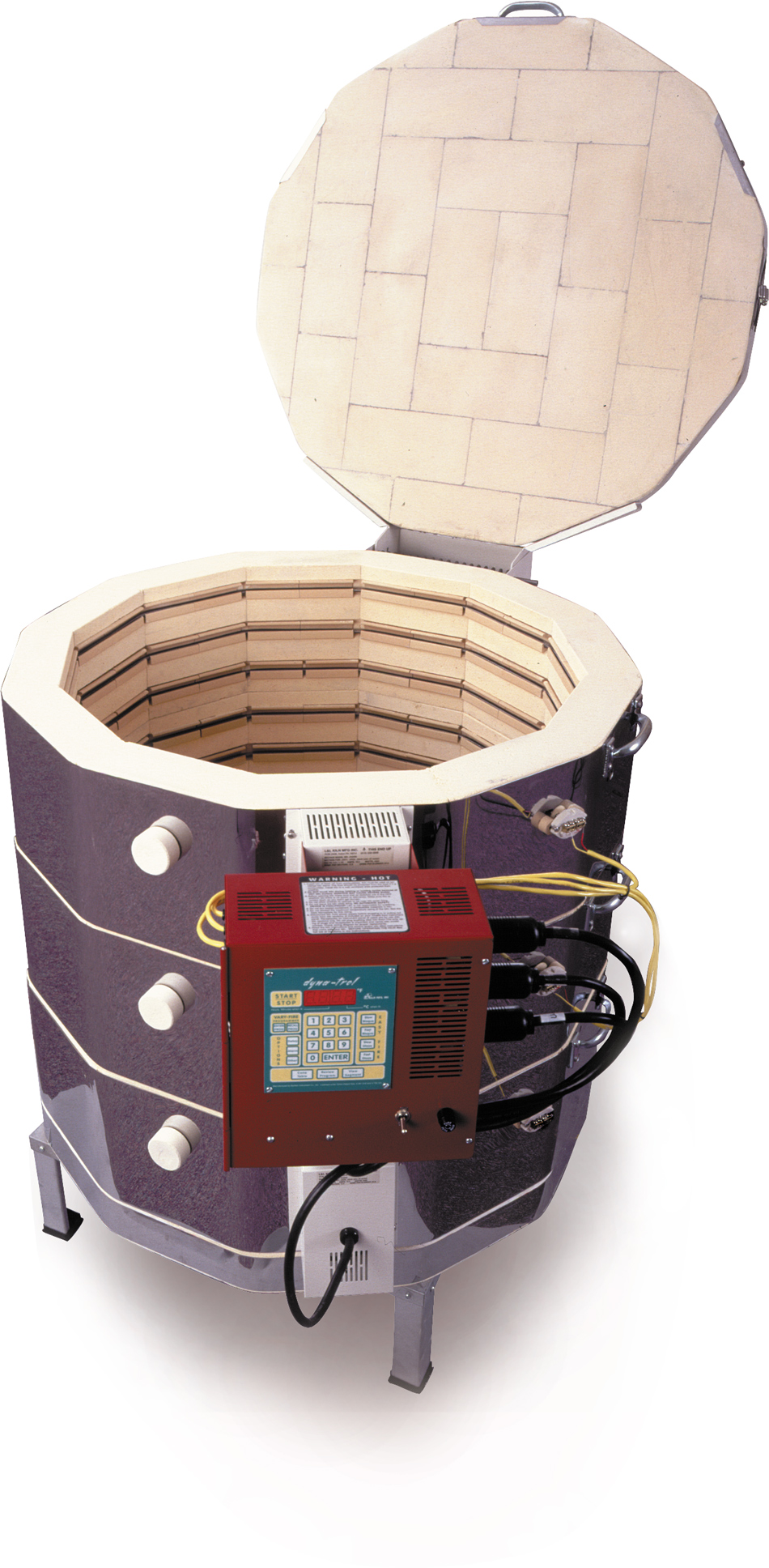

L&L JD2927-3 Jupiter Customizable Sectional Electric Kiln

Questions? Recommendations? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

Videos

Built to Order Customizable Automatic Sectional Kilns

Jupiter Automatic Polygonal sectional kilns come in 10 sizes from 2.5 cubic feet to 17.2 cubic feet. They are available in 3 basic cross sections from 18" high to 45" high (with custom configurations and sizes available). 2-1/2" or 3" firebrick, DynaTrol automatic program control with zone control, "Easy-Lift, Easy-Load" spring hinges on sizes 23-3/8" diameter and above. Uniquely, the kiln sections plug into an external control panel. The kiln can be shortened or made higher easily and can be pulled apart for loading sculpture or large objects that need to be fired.

Extra Images

JD236 Pull Apart Jupiter
JD2945 Pull Apart Jupiter
JD18 Closed
JD2917 Closed
JD230 Open
JD23 Closed
Jupiter Panel Detail
Jupiter Panel Detail
Jupiter Kiln Packed in a Car
Jupiter Kiln Adapted for an Industrial Process

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
JD18 Electric Kiln 2.6 17-1/2" Diam x 18" High 2-1/2" Brick
JD18-3 Electric Kiln 2.5 16-1/2" Diam x 18" High 3" Brick
JD18X Electric Kiln 3.9 17-1/2" Diam x 27" High 2-1/2" Brick
JD18X-3 Electric Kiln 3.7 16-1/2" Diam x 27" High 3" Brick
JD23V Electric Kiln 4.7 23-3/8" Diam x 18" High 2-1/2" Brick
JD23V-PB Electric Kiln 4.7 23-3/8" Diam x 18" High Power Bottom
JD23V-3 Electric Kiln 4.5 22-3/8" Diam x 18" High 3" Brick
JD23V-3-PB Electric Kiln 4.5 22-3/8" Diam x 18" High Powered Bottom, 3" brick
JD230V Electric Kiln 7 23-3/8" Diam x 27" High 2-1/2" Brick
JD230V-PB Electric Kiln 7 23-3/8" Diam x 27" High Power Bottom
JD230-EZ Electric Kiln 7 23-3/8" Diam x 27" High 2-1/2" Brick. e23T higher power elements.
JD230V-3 Electric Kiln 6.7 22-3/8" Diam x 27" High 3" Brick
JD230V-3-PB Electric Kiln 6.7 22-3/8" Diam x 27" High Powered Bottom, 3" brick
JD230-3-EZ Electric Kiln 6.7 22-3/8" Diam x 27" High 3" Brick. e23T higher power elements.
JD236V Electric Kiln 9.4 23-3/8" Diam x 36" High 2-1/2" Brick
JD236V-PB Electric Kiln 9.4 23-3/8" Diam x 36" High Power Bottom
JD236V-3 Electric Kiln 8.9 22-3/8" Diam x 36" High 3" Brick
JD236V-3-PB Electric Kiln 8.9 22-3/8" Diam x 36" High Powered Bottom, 3" brick
JD245V Electric Kiln 11.8 23-3/8" Diam x 45" High 2-1/2" Brick
JD245V-PB Electric Kiln 11.8 23-3/8" Diam x 45" High Power Bottom
JD245V-3 Electric Kiln 11.1 22-3/8" Diam x 45" High 3" Brick
JD245V-3-PB Electric Kiln 11.1 22-3/8" Diam x 45" High Powered Bottom, 3" brick
JD2918-3 Electric Kiln 6.8 28" Diam x 18" High 3" Brick
JD2918-3-PB Electric Kiln 6.8 28" Diam x 18" High Powered Bottom, 3" brick
JD2927-3 Electric Kiln 10.2 28" Diam x 27" High 3" Brick
JD2927-3-PB Electric Kiln 10.2 28" Diam x 27" High Powered Bottom, 3" brick
JD2936-3 Electric Kiln 13.6 28" Diam x 36" High 3" Brick
JD2936-3-PB Electric Kiln 13.6 28" Diam x 36" High Powered Bottom, 3" brick
JD2945-3 Electric Kiln 17 28" Diam x 45" High 3" Brick
JD2945-3-PB Electric Kiln 17 28" Diam x 45" High Powered Bottom, 3" brick

Features

Durability

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Aluminized stands are extremely strong and corrosion resistant. The offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
Industrial grade ceramic terminal blocks make changing elements easy.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Special brick coating hardens and seals brick for durability and cleaner operation.
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Performance

Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Feather-light spring hinge allows full access without a side support bar - for easy loading. Standard on all 10 and 10 sided polygonal kilns.
Solid large non-tapered peepholes allow a wider view into the kiln.
This is used on top-loading kilns that are 8 sided or less

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Most L&L Kilns have a three-year limited warranty.

Serviceability

Sectional kiln construction make Jupiter kilns easy to move, set up and disassemble for maintenance.
Each kiln sections plugs into the Jupiter control panel. Easy to remove or change kiln configuration.
Wiring is neatly laid out using National Electrical Code and UL499 Standards
The bottom can be easily reversed in case of a firing mishap.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch

PDFs

See PDF Library for International versions.
