Models up to 100 Cubic Feet (2.83 Cubic Meters) - A Unique Industrial Solution

L&L Kiln Mfg., Inc. makes large-format industrial-grade Bell-Lift kilns designed for industrial ceramics and other industrial applications. One model is 100 cubic feet (66” wide by 47” deep by 54” high). Larger and smaller models can be built. The kiln reaches 2350°F (1290°C or cone 10). It is easy to load, easy to maintain and very economical. The welded metal frame breaks down for easy shipping (the entire kiln can fit on one flatbed truck or a shipping container). Assembly is straightforward- see this page for assembly photographs.

Industrial Kiln with Pottery Kiln

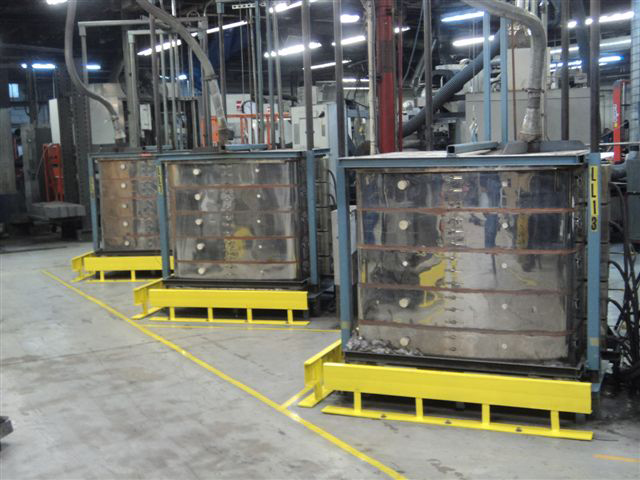

Three Jumbo Bell-Lift Kilns used for ceramic armor.

Extra Images

Jumbo Bell-Lift Kilns - 100 Cubic Feet Industrial Kiln
Jumbo Bell-Lift Kilns - 100 Cubic Feet Industrial Kiln

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
TB644754 Industrial Kiln 100 66" Wide x 48-1/2 Deep x 54" High

Features

Durability

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Arched sides on DaVinci kilns are very strong and promote good air circulation
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.
Industrial grade ceramic terminal blocks make changing elements easy.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Special brick coating hardens and seals brick for durability and cleaner operation.
Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Performance

Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Load your DaVinci kiln from all four sides. Available on T3400 and X3200 Series.
Solid large non-tapered peepholes allow a wider view into the kiln.

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Most L&L Kilns have a three-year limited warranty.

Serviceability

Sectional kiln construction make DaVinci kilns easy to move, set up and disassemble for maintenance.
The control panel is mounted on a stand away form the kiln.
DaVinci Panels are wired to industrial standards with good clean wire layout.
The bottom can be easily reversed in case of a firing mishap.

Safety

Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch
