The elements fell out of the holders in my kiln - what should I do?

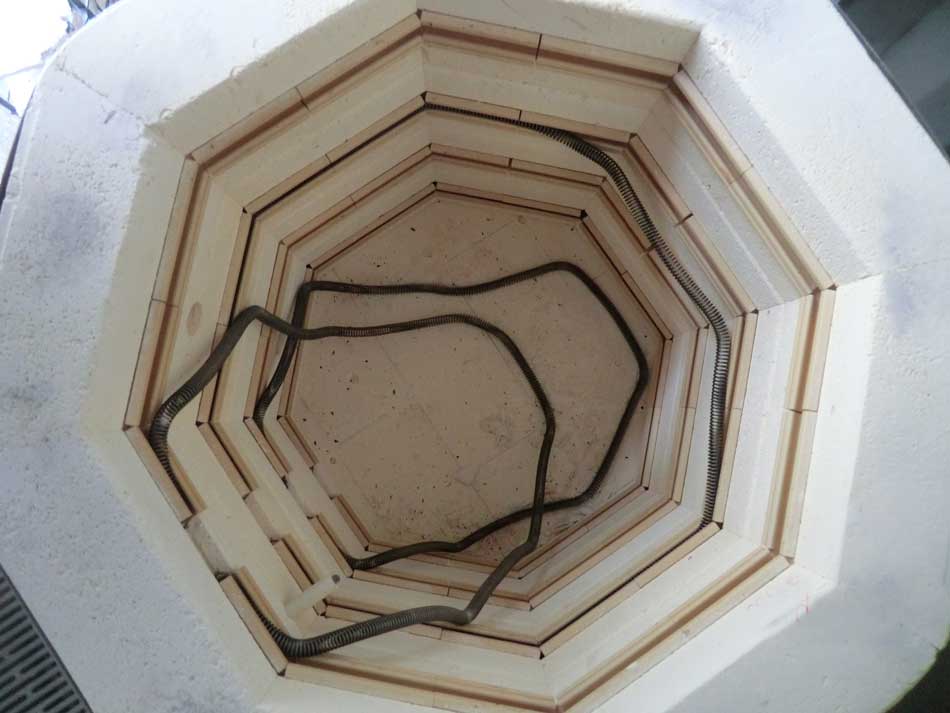

L&L element holders require no pins so the elements can expand over time on their own without bulging out between pins. However, sometimes elements do fall out of the holders sometimes. Because of grain growth in the element wire after being heated many times, or sometimes when the kiln is new and the elements have not settled into the grooves, the elements will "jump" out of the holders.

The elements can probably be saved if they have not stretched out.

  1. Get heat resistant gloves.
  2. Turn the kiln on for a little while to heat up the elements so they are slightly soft.
  3. TURN THE KILN OFF! (Or you could be electrocuted and killed.)
  4. Using needle nose pliers or other pliers pick up the element in two places. Stretch as needed but try not to change the shape too much.You may have to compress the element slightly if the length has grown.
  5. Place the element back in the holder.
  6. If you have some bits of fired high temperature (cone 6 or higher) clay use them as a wedge to force the element in the groove.
  7. Go around the entire length of the element and make sure it is as far down into the groove as you can.
  8. You may have to reheat more than once to get the element to be pliable.
  9. Heat the kiln to cone 5.

Another way to heat up the element with a propane torch and needle-nose pliers.

  1. Be very careful with the propane torch. Wear leather working gloves and safety glasses. It is worth it to go to Home Depot and get the push-button ignition system type of torch. You grab the torch, press the trigger, out comes flame, release trigger, flame goes out. All with one hand.
  2. To do it right do the bottom-most repairs in a kiln first. That way you are not leaning past the heat from the last repair.
  3. Heat up about 3" of the element near one side of where it comes out of the holder. Heat the element until it is red hot. Turn off the heat and use the pliers to push that section of the element back in to the element holder. When the metal is red hot it is very pliable. Compress the coils if necessary to shorten the element. Keep moving along the element always getting hot the part of the element that is closest to being back in the element holder. Try to keep the spaces between the element coils even as you push them into place.

NOTE: On some of the larger DaVinci kiln (like the T3400 series), where the elements are long and the corners are sharper than in a polygonal kiln, it is sometimes a good idea to wedge in the elements with the small ceramic spacers that we put in the corners for shipping.

Additional Actions to Take

  • Unplug kiln.
  • Open the outer control box. See the Assembly Instructions if necessary.
  • Using your Multimeter set on Resistance or Ohms, 200, check resistance on the wires numbered 1 and 2 and then again between 3 and 4.  These wires are thick black wires that attach to the terminal strip that carry power from the relays to the elements.
  • If you check the resistance at this point, the values you should get are as follows: 240 Volt Elements: 20.8 ohms, 220 Volt Elements: 17.6 ohms, 208 Volt Elements: 15.6 ohms.
  • The values should be within 6-12% of the listed values. Typically the resistance increases over time and use, and this makes the power generated by the elements decrease. Depending on the temperature one is firing at, wider variation may not be problematic.
  • In addition, here are the values for the individual elements: 240 Volt Elements: 10.4 ohms, 220 Volt Elements: 8.8 ohms, 208 Volt Elements: 7.8 ohms. Individual element resistance values are important as a way to provide a means of checking specific element resistance before you put elements in the kiln.

See this tutorial on how to use a multimeter.


The most common cause of kiln slowdown, E-1 messages, and failure to reach temperature is element wear. As your elements age  they generally increase in electrical resistance. According to Ohm's Law, when resistance, measured in Ohms, increases, both Watts and Amperes will decrease, assuming Voltage remains constant. Since Amps and Watts are the measures of current and power respectively, they can be thought of as the amount of juice that your kiln has to generate heat. Obviously if you don't have enough power, your kiln will fire slowly and might not even reach the desired temperature.


Using resistance, we can tell exactly how much power your kiln has lost over the course of your element's life. For example on an e23T that uses 240V, a brand new kiln section would read about 14.5 ohms. If you measured this same kiln section after several months of cone 6 firings let's say and the reading was 16.5 Ohms, you would know that this section of elements has lost approximately 14% of it's power (16.5/14.5=1.138, or close to a 14% increase). Again, an increase in resistance means decrease in power. A very general rule of thumb is that most people will typically begin to notice some slowdown once you've lost more than 10% of your power. It will certainly vary based on the kiln you have, your voltage, as the types of firing you do. People only doing low fire work will continue to get by on lower power than those needing to go to higher temperatures (cone 6+). As you can see, measuring your element Ohms is the best way to identify when elements need replacing.

Keep in mind that the ohms on the wiring diagram are per ELEMENT while your reading will be per SECTION. How you figure out the section ohms depends on whether the elements are wired in Parallel or Series. Most kilns are wired in Parallel except for JD230V and most 18" kilns like the e18T. For a parallel kiln you take the per element ohms listed and divide by the number of elements per section. Ex. e23T 240V 1 Phase is 28.9 Ω per element with two elements per ring = 14.5 Ω per section.   Ex. 2. JD2927 240V is 36.5 Ω per element w/ three elements per ring = 12.2 Ω per section. See this link for more info on Series vs. Parallel

Here we will show how to best measure your element resistance for two groups of L&L Kilns, into which most models fall.


In these series' of kilns a piggy-backed control panel covers up the element terminals.

  1. Turn the power to the kiln completely OFF and unplug it if possible. If it is direct wired, then you should at least turn off all power at the disconnect switch or circuit breaker.
  2. Open the outermost control panel by unscrewing it either from the element cover box in the case of Easy-Fire, eQuad Pro, School Master and Liberty Belle kilns or from the kiln body in the case of Doll kilns.
  3. Once you open up that control panel you will see the element power wire terminal strip. See the picture. It will have numbered wires coming from the element terminal blocks and wires connecting to the power relays. There are two wires per kiln section/ring, so numbers 1 & 2 are for the top section, 3 & 4 for the middle, and 5 & 6 for the bottom section on a three ring kiln.
  4. Set your multimeter to Ohms (Omega symbol Ω) and using your testing leads, place one in between the two tabs/terminals w/ #1 wires connected. There is a small circular divot that the lead fits into (see picture). Put the other lead on terminal #2 and make note of the reading. Repeat the process for 3 & 4 and then for 5 & 6. Remember that each pair of wires represents one section.
  5. Compare your readings to those on the wiring diagram in your instruction manual. Keep in mind that the ohms on the wiring diagram are per ELEMENT while your reading will be per SECTION. See above for more info on understanding the readings.



In these series' of kilns, the control panel is separated from the kiln body and the element terminals are connected to the controls via external jumper cords or plugs.

  1. Turn the power to the kiln completely OFF and unplug it if possible. If it is direct wired, then you should at least turn off all power at the disconnect switch or circuit breaker.
  2. Unplug the first jumper cord from the control panel.
  3. Set your multimeter to Ohms (Omega symbol Ω) and using your testing leads, place one lead on each of the "hot" prongs. They will be the flat ones.
  4. Make note of the reading and move on to the next one.
  5. Compare your readings to those on the wiring diagram in your instruction manual. Keep in mind that the ohms on the wiring diagram are per ELEMENT while your reading will be per SECTION. See above for more info on understanding the readings.

See this tutorial on how to use a multimeter.

  1. Unplug kiln.
  2. Remove the Control Box.
  3. Using a 3/8" nut driver or ratchet wrench or adjustable wrench, remove the nuts that hold the element end onto the Element Terminal Bolt. Note that the terminal bolt head is held in place by an inset shape on the underside of the ceramic terminal block and it will not turn much.
  4. Untwist the element end from around the Element Terminal Bolt. Straighten it out as much as possible.
  5. In most cases the element can be lifted out of the holder at this point. Sometimes, if the element has really disintegrated, you need to remove it in pieces with needle nose pliers.
  6. If element is hard to get out of the holders (because of growth of the element) you can try heating up the kiln slightly so as to heat up the element slightly to just the point where element is slightly pliable–don't let it get red. This will soften the wire. Then turn off the kiln and disconnect all power to the kiln. Using heat protecting gloves and a pair of needle nose pliers pull out the softened element.
  7. From the inside of the kiln, using needle nose pliers, grab the element as close to where it goes through the brick wall to Terminal Block. Pull the element end through the hole. Be careful not to enlarge the hole in firebrick. The brick is soft and will not take much abrasion.
  8. Be sure to check for failure points for evidence of contamination on the element and the element holder. If the element holder is contaminated it will cause rapid failure of the new element. Replace contaminated holders with the new ones.
  9. Using your multimeter check the resistance of the new element.
  10. Install the twisted ends of the elements through the holes in the wall of the kiln. Element ends should be straight at this point.
  11. Pull them up tight up to the wall of the kiln by pulling from outside the kiln.
  12. Lay the element into the groove. Note that the unfired element is going to have some springiness to it before it is fired for the first time. You may need to use a screwdriver to press the element into the holder. YOU DO NOT NEED PINS.
  14. Consulting your picture or labeling, wrap the appropriate element tails around the appropriate element connection bolt, clockwise, one around and cut off the excess tail.
  15. Install the elements and hardware: Place the wires from the jumper cord or connecting wires onto the appropriate bolts and tighten with stainless steel nuts.
  16. A washer goes under the first element.
  17. Twist the first element end CLOCKWISE around the Terminal Bolt.
  18. The next element gets twisted around the Terminal Bolt on top of the first element.
  19. Another washer goes over the Terminal Bolt.
  20. Place a nut on top and tighten it.
  21. Put another washer on.
  22. Put on the Ring Terminal of the Power Lead Wire.
  23. Put another washer on.
  24. Put another nut on and tighten it. How much the nut can be tightened is dependent on how tight the element connection bolt is on the element connection board. A tight connection is very important, but if you tighten too much and twist the element on the bolt too far you could break the element, the bolt, or the insulator.
  25. Reattach the ground wires and the element box if the kiln has them. DO NOT FORGET TO ATTACH GROUND WIRES. IF EACH KILN SECTION IS NOT GROUNDED THIS CAN BE VERY DANGEROUS.
  26. Test the resistance at the jumper cord's plug head or at the other end of the connecting wires.
  27. Reattach the control box, turn on the kiln and make sure all the elements come on.

See this tutorial on how to use a multimeter.

See this video:

  1. Mark the floor with two marks for stretched length. Have a helper stand on the tail of one element, and pull the other tail until the element is the proper length. The assistant must stand very firmly because a flying element could cause severe injuries (WEAR SAFETY GLASSES WHEN DOING THIS). Alternately, clamp the end to something with vice-grips.
  2. Initially stretch element about 50% of length of its final fully stretched length. Examine for evenness of stretch. Selectively stretch close wound sections to provide uniformity of stretch.
  3. Repeat this procedure several times.
  4. You will have to pull element beyond last mark in order to obtain full stretch.
  5. If overstretch occurs insert a metal rod or small diameter dowel into the element coil and compress with needle nose pliers.
  6. Stretch uniformity is necessary for satisfactory element life.
