e18T-3-eu Pottery Kiln

Click on image to enlarge

e18T-3-eu Pottery Kiln

More images

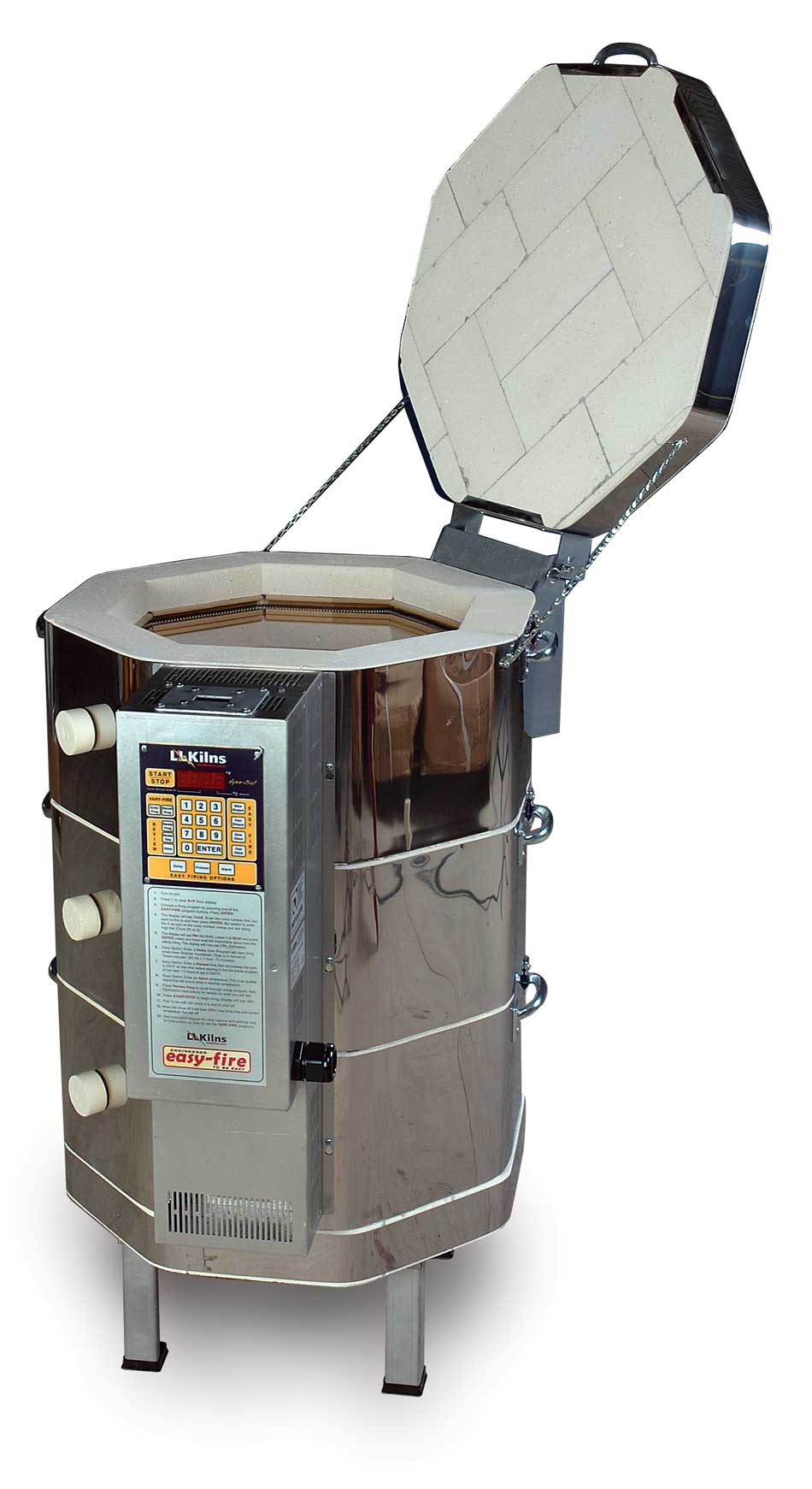

The e18T-3-eu open from the left
The e18T-3-eu closed
e18T-3-eu Pottery Kiln
e18T-3-eu Pottery Kiln
e18T-3-eu Pottery Kiln
e18T-3-eu Pottery Kiln
Notice how the dense ceramic holders radiate and transmit the energy of the elements into the kiln
Heavy-duty 14 gauge aluminized steel full-support stand shown with stainless vent bypass collection box and leg detail
The door power switch
The control panel shown in the open position for easy maintenance
The switch arm that prevents the door from opening when the latch is turned
Turning the knob on the door switch
Door switch closed

Furniture Kit

 H-E-K18T/30 ($350.00)
Furniture Kit for e18T-3 Easy-Fire (3" brick)

Two 15" Full Round Shelves and Four 15" Half Round Shelves (5/8" thick), Six each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts, Heat Resistant Gloves and 1 pound of Cone 10 Kiln Wash

Questions? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

e18T-3-eu Pottery Kiln

Model e18T-3-eu Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open piggy-back control panel, with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, easy-lift spring hinge, 16-1/2" diameter by 27" high (3.7 cubic feet). 3" K23 brick. European version with Positive Door Interlock Switch, lid vents. Direct power connection. Cone 10. 1290 Deg C.

$2830
3" (76 mm) K23 Premium Firebrick
Top-Loading
Three 9" high sections
8 sides
3.7 cubic ft (105 Liters)
240 pounds (110 Kg)
16-1/2" Diam x 27" High
27" Wide x 40" Deep x 40" High
68.6 cm Wide x 101.6 cm Deep x 101.6 cm High
Part Number
Watts
Volts
Phase
Fuse Size
K-E-18TE/52
8800 W
380-415 V
Three Phase (Wye)
20 Amp

Maximum Temperature

  • Max TemperatureCone 10, 2350F, 1290C

Additional Electrical Information

Certifications and Markets

  • InternationalMade for EU market
  • CECertified to CE Directives
  • UL499Not listed to UL499
[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

Three 9” high sections stack on top of each other. The hinge and element connection box hold the entire kiln together as an integrated unit. The kiln is very easy to assemble and disassemble. All wires are marked or color coded and attach to pull-off terminal strips.  More about sectional construction...
Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.
Simple strong hinge with chain for door support
Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.
A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.
Solid ceramic peephole plugs with full 1” diameter. Five total: one per section plus two in the lid for ventilation.
Three control zones with three separate thermocouples. More about zone control.
8 Ga Type K Exposed Thermocouple in Mullite Protection Tube (4.5" long /114mm)
Mounted on control panel
All controls and components are mounted in a separate control panel that is piggy-backed on top of the element connection box. A layer of insulation and this separation helps keep the controls cool for longer life. The control panel and element box are hinged for easy access and maintenance. Moreover, when the top control panel is in the open position it rigidly stays in a perpendicular position making servicing safer and easier than with other make kilns. Also the control box can be easily removed for servicing. On/off switch and control fuse are included. More about Easy-Fire control panel.
Control box drops down perpendicular to kiln for easy access to wiring and controls. All electrical wires are color coded or numbered.

Durability

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Industrial grade ceramic terminal blocks make changing elements easy.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.
Corrosion resistant materials and methods result in a long-lasting kiln.
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.

Performance

DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
K23 firebrick combines good insulation with strength

Ease of Use

Solid large non-tapered peepholes allow a wider view into the kiln.
Feather-light spring hinge allows full access without a side support bar - for easy loading. Standard on all 10 and 10 sided polygonal kilns.
This is used on top-loading kilns that are 8 sided or less

Support

Most L&L Kilns have a three-year limited warranty.
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Serviceability

Remove two screws and a few plug-on wires and the panel disconnects in 5 minutes.
The bottom can be easily reversed in case of a firing mishap.

Safety

Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.

Elements

The combination of 1/2" diameter element coils, the doubled surface area of the Quad element design, and superior heat transfer of L&L's patented ceramic element holders, make this the best element system in the world today.

APM elements increase element life in difficult applications

Thermocouples

Type S Platinum Thermocouples are recommended for high fire applications

Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity.

Vents

The L&L Vent-Sure Kiln Vent is the most powerful downdraft kiln vent on the market today. That means you have more flexibility in the installation.

The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the DynaTrol (or Genesis).

Kiln Furniture

Kiln furniture kits are the recommended set of ceramic shelves, posts and kiln wash that go with each kiln model. These are for loading the work in the kiln.

Cone 10 Kiln wash is used to coat shelves to prevent sticking of glaze.

These safety gloves are perfect for handling hot work when unloading a kiln.

Controls

The new Genesis control from Bartlett includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol.

Control, monitor and record data for up to 10 kilns from your computer for a one-time price.

All power is switched off with a 50 amp power switch before the door can physically be opened. (Easy-Fire & School-Master Kilns only).

Power

This option helps protect your control from electrical noise

Miscellaneous

This special Seismic Kiln Rack and Brace is designed to prevent a kiln from falling over during an earthquake.

36" Wide x 36" Deep x 48" High
91 cm Wide x 91 cm Deep x 121 cm High
36" Wide x 36" Deep x 60" High
91 cm Wide x 91 cm Deep x 152 cm High
36" Wide x 36" Deep x 63" High
91 cm Wide x 91 cm Deep x 160 cm High
36" Wide x 36" Deep x 63" High
91 cm Wide x 91 cm Deep x 160 cm High
255 lbs (116 kg) + Kit 324 lbs (147 kg) + Vent 280 lbs (127 kg) + Kit + Vent 349 lbs (158 kg)
Skidded Carton with Foam-in-Place packaging
