A Great Small Test & Hobby Kiln

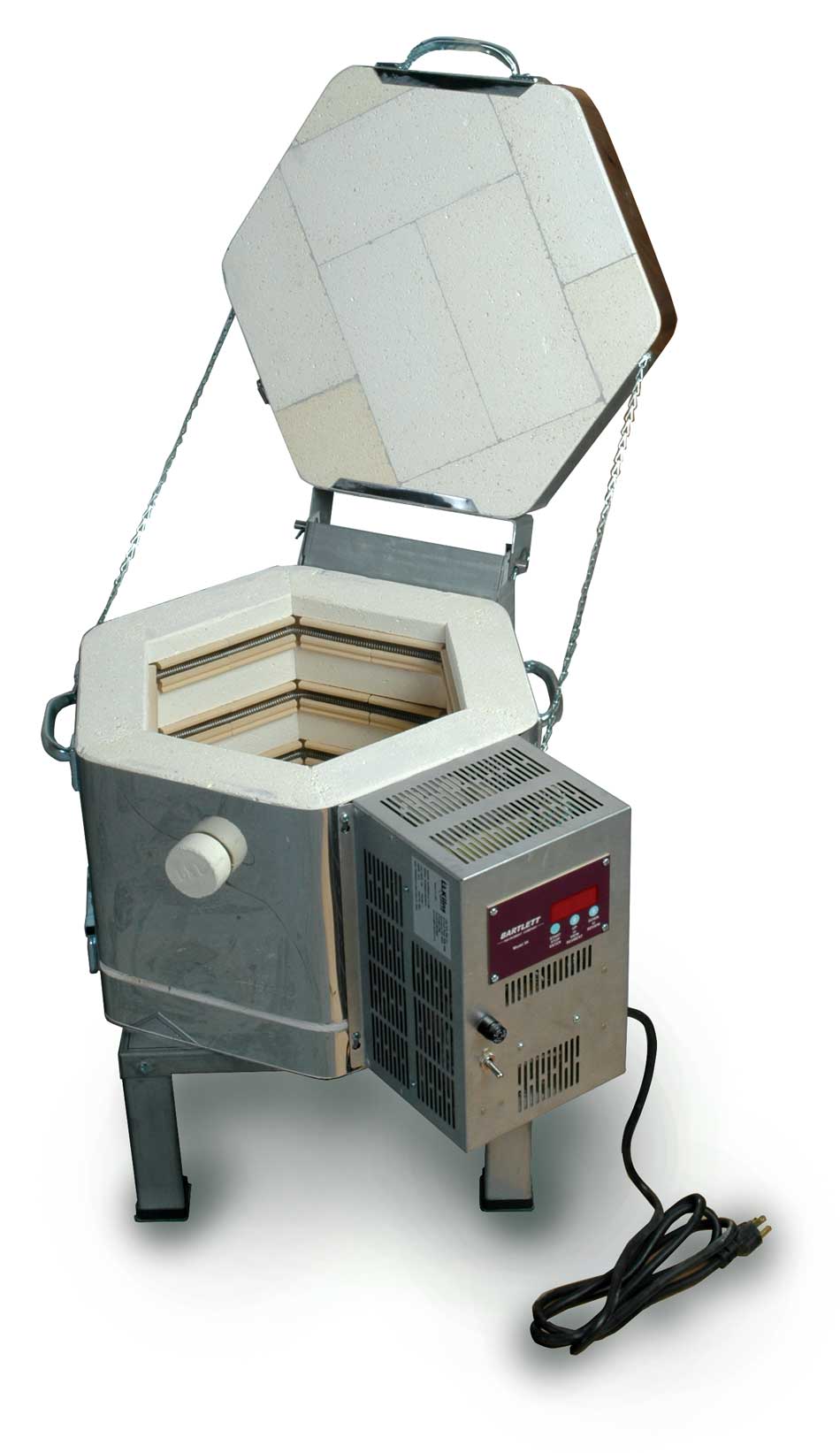

 Doll/Test top-loading kilns come in one size only: 11" diameter by 9" high. Typically they work on 120 volts, although a version is available for 200-240 volts. The 120 volt versions are available in either 15 amp Cone 5 version or a 18 amp Cone 6 version. 200-240 versions are rated to Cone 10. There is a choice of two controls: The One-Touch™ intuitive control or the more sophisticated 24-Key DynaTrol.

Extra Images

Doll/Test Kilns
Doll/Test Kilns
Doll/Test Kilns
Doll/Test Kilns
Doll/Test Kilns
Doll/Test Kilns

Kiln Models

Model No Cubic Ft Inside Dim (Inches) Description
DL11-DB Test Kiln 0.5 11" Diam x 9" High One-Touch Control, 120 volts, 15 amps, Cone 5
DLH11-DB Test Kiln 0.5 11" Diam x 9" High One-Touch Control, 120 volts, 18 amps, Cone 6
DLH11-DXB Test Kiln 0.5 11" Diam x 9" High One-Touch Control, 208-240 volts, Cone 10
DL11-D Test Kiln 0.5 11" Diam x 9" High DynaTrol, 120 volt, 15 amp, Cone 5
DLH11-D Test Kiln 0.5 11" Diam x 9" High DynaTrol, 120 volt, 18 amp, Cone 6
DLH11-DX Test Kiln 0.5 11" Diam x 9" High DynaTrol, high volts, Cone 10

Features

Durability

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Aluminized stands are extremely strong and corrosion resistant. The offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.
Industrial grade ceramic terminal blocks make changing elements easy.
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Special brick coating hardens and seals brick for durability and cleaner operation.
Corrosion resistant materials and methods result in a long-lasting kiln.
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Performance

DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
K23 firebrick combines good insulation with strength

Ease of Use

Four-Key Control that Redefines Simplicity • Perfect for Schools & Hobbyists
Solid large non-tapered peepholes allow a wider view into the kiln.
This is used on top-loading kilns that are 8 sided or less

Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Most L&L Kilns have a three-year limited warranty.

Serviceability

The bottom can be easily reversed in case of a firing mishap.

Safety

Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
All L&L Kilns come with an on-off switch
