Doll/Test Kilns

Click on image to enlarge

DL11-DB Test Kiln

More images

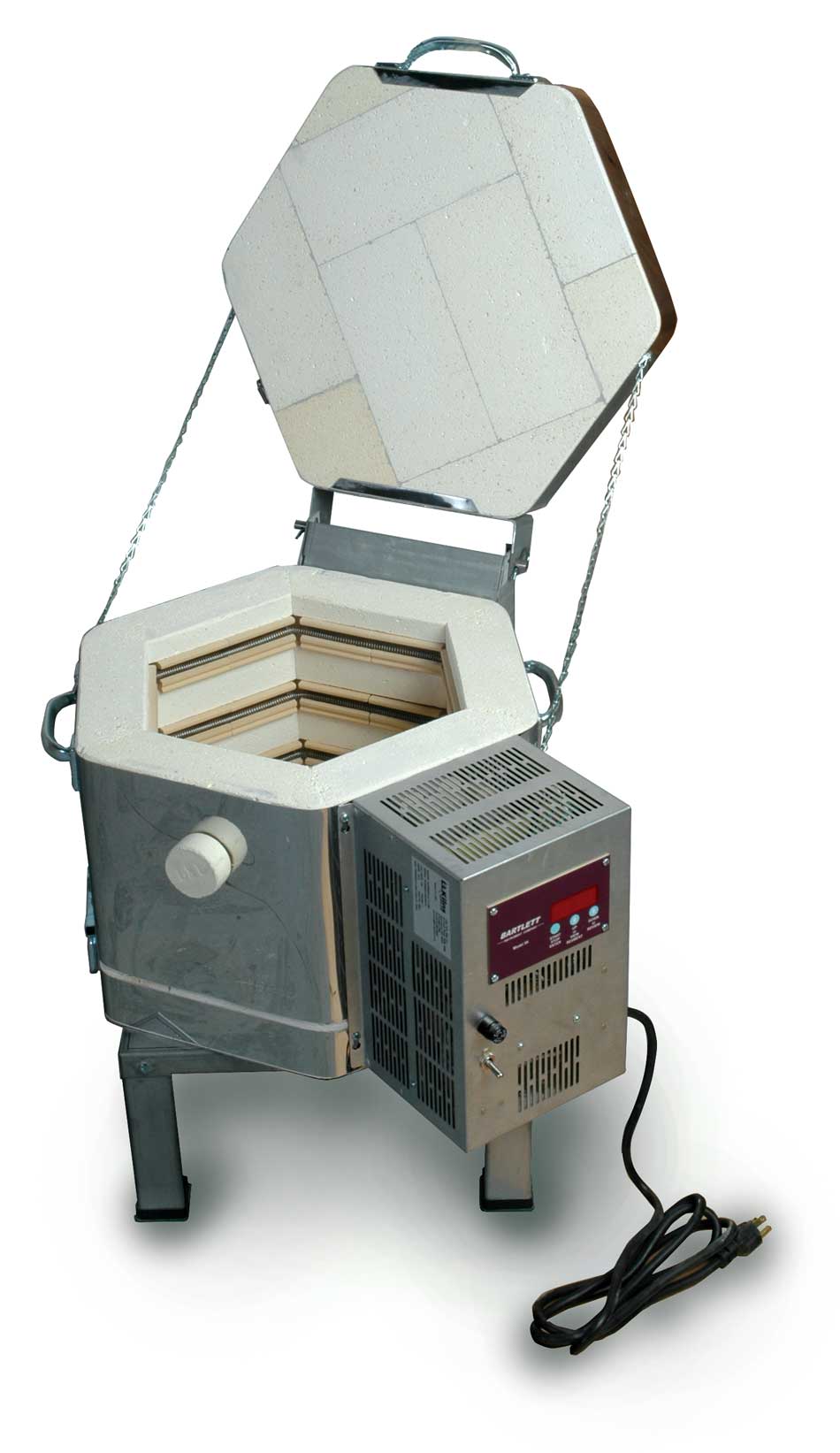

DL11-DB Test Kiln open from the left side

Inside the element connection panel you can see the thermocouple and ceramic element terminal.

Note the way we make element connections electrically tight but easy to work on. No crimping required.

Furniture Kit

Kit: H-D-KDHL/00 ($130.00)

Includes:
Two 9" Full Round Shelves (3/8" thick), Four each of 1/2", 1", 1-1/2", 2", 3", & 4" High 1" Triangular Ceramic Posts, 1 pound Cone 10 Kiln Wash

Questions? Quote?

Send an email to sales@hotkilns.com or
call 800-750-8350.

DL11-DB Test Kiln

Model DL11-DB Doll/Test Kiln with a One-Touch™ Control. Kiln comes with hard ceramic element holders, thermocouple protection tube, strong solid-top stand, and solid peephole plug. 11" Diam x 9" High (0.5 cu ft). 2-1/2" K23 brick. 120 volts, 15 amps. Includes NEMA 5-15 plug. Cone 5. (Not listed to UL499)

One-Sheet Product
Specification PDF

Buy Now

$1200

Insulation: 2-1/2" (63 mm) K23 Premium Firebrick

Loading: Top-Loading

Sections: One section

Sides: 6 sides

Volume: 0.5 cubic ft (14 Liters)

Kiln Weight: 105 pounds (47 Kg)

Dimensions (Inside): 11" Diam x 9" High

Dimensions (Outside): 19" Wide x 25" Deep x 22" High
48.3 cm Wide x 63.5 cm Deep x 55.9 cm High

General Dimension Drawing:

Part Number

Watts

Volts

Phase

Fuse Size

K-D-DL1B/10

1800 W

120 V

Single Phase

20 Amp

Maximum Temperature

Max TemperatureCone 5, 2170F, 1190C

Additional Electrical Information

Amps15
Max TemperatureCone 5, 2170F, 1190C
Wire Connection5-15P Plug (15 amp, 120 volt)
Wire Ga for Connection14 Ga
Branch FusingNo

Certifications and Markets

InternationalMade for USA market only
CENot CE certified
UL499Not listed to UL499

[sell_price]

Click on Red Arrow to expand specifications for each voltage. When printing the page expand the voltage specifications first.

Assembly: One 9” high section sits on a bottom. The kiln is very easy to assemble and disassemble.

Construction: Stainless steel wrapped around shaped firebrick. There are three adjustable clamps welded to each casing. All assembly is with stainless steel screws. The kiln sections sit on a separate stand.

Hinge: Simple strong hinge with chain for door support

Stand: Heavy-duty 14 gauge full solid stand with multiple bends for strength. Legs bolt on with heavy 1/4-20 stainless bolts. The metal is aluminized for good corrosion resistance.

Brick Coating: A proprietary brick coating is applied to all interior surfaces of the kiln. This is put on before the element holders are inserted. This coating penetrates the firebrick and fuses the surface on a microscopic level which helps prevent dusting and crumbling of the fragile firebrick.

Peephole Plugs: One solid ceramic peephole plug with full 1” diameter.

Warranty: Limited Three Year Warranty

PDF:

Control Type: 4-Button One-Touch Control

Zones: Single Zone.

Thermocouple: 8 Ga Type K Exposed Thermocouple (4.5" long /114mm)

Control Mounting: Mounted on control panel

Control Box Mounting: One box.

Control Panel Service: Controls are mounted in a removable box.

Durability

Hard Ceramic Element Holders Make L&L Kilns More Durable

Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.

Thermocouple Protection Tubes

Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.

Thick 8 Gauge Thermocouples

Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.

Proprietary Reflective Coating Hardens & Seals Brick

Special brick coating hardens and seals brick for durability and cleaner operation.

Solid Super-Strong 14 Gauge Aluminized Steel Stand

Aluminized stands are extremely strong and corrosion resistant. The offer solid support under the kiln - unlike spot-welded angle stands that are common in the industry.

Extra Case Clamps

Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Corrosion Resistant Case

Corrosion resistant materials and methods result in a long-lasting kiln.

Performance

Thermal Ceramics Firebrick

K23 firebrick combines good insulation with strength

Ease of Use

Solid Wide-View Peephole Plugs

Solid large non-tapered peepholes allow a wider view into the kiln.

One-Touch™ Intuitive Kiln Control (School-Master, Liberty-Belle, Doll)

Four-Key Control that Redefines Simplicity • Perfect for Schools & Hobbyists

Simple Strong Hinge with Wide-Angle Opening

This is used on top-loading kilns that are 8 sided or less

Support

Standard Three-Year Limited Warranty

Most L&L Kilns have a three-year limited warranty.

Superior Technical Support

The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.

Serviceability

Reversible Bottoms

The bottom can be easily reversed in case of a firing mishap.

Safety

On-Off Switch and Panel Fuse

All L&L Kilns come with an on-off switch

Mercury Free Power Contactors

Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools

Elements

APM Sintered Powder Metal Elements

APM elements increase element life in difficult applications

Thermocouples

Type S Platinum Thermocouples

Type S Platinum Thermocouples are recommended for high fire applications. NOTE: Price of upgrade is per each thermocouple.

Pyrocil Metal Sheathed Industrial Thermocouples

Pyrocil thermocouples are sensitive but limited to about 2200°F but offer greater sensitivity to temperature change and so may be appropriate in applications below 2200°F that require sensitivity. NOTE: Price of upgrade is per each thermocouple.

Vents

Vent-Sure Downdraft Kiln Vent System

The L&L Vent-Sure Kiln Vent is the most powerful downdraft kiln vent on the market today. That means you have more flexibility in the installation.

Vent Control

The Vent Control allows you to automatically control the operation of the Vent-Sure kiln vent with one of the outputs from the DynaTrol (or Genesis).

Kiln Furniture

Furniture Kits

Kiln furniture kits are the recommended set of ceramic shelves, posts and kiln wash that go with each kiln model. These are for loading the work in the kiln.
