Spring-Loaded Lid For Easy Opening and Gentle Closing of DaVinci

Even the large heavy DaVinci lids are lightweight

  • The lid can be opened with one hand by almost anyone - even the largest lid on the T3400 Series.
  • Because the lid closes gently there is less wear and tear on the lid and lip and less chance of breaking the lid. The counterbalance system takes almost all the weight of the lid off the kiln.
  • In addition, the lid is fully supported around the perimeter with structural steel members. This takes stress off of the fragile firebrick.

Spring tension makes lids lite

adjustable height of the kiln

  • The hinge post is adjustable up and down. This allows the hinge system to be adapted to your kiln if you add or remove a section.
  • There are safety chains to lock the lid in the up position.
  • The counterbalance frame is bolted to two kiln sections. You can remove the upper section of 36" kilns and the upper two sections of 45" high models without dismantling the counterbalanced hinge or removing the lid.

Adjustable hinge

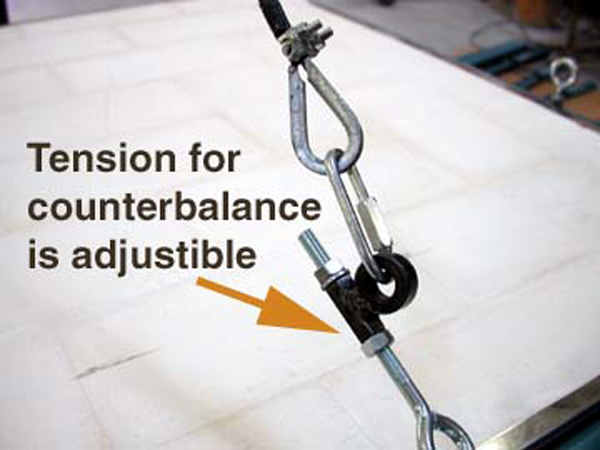

Adjustable Spring Tension

  • Turnbuckles allow you to adjust the spring tension and therefor the weight of the lid

Turnbuckles for adjusting tension

includes heavy-Duty welded angle-Iron frame

  • The heavy-duty hinge system is made of welded structural steel.

Extra Images

Spring-Loaded Lid For Easy Opening and Gentle Closing of DaVinci

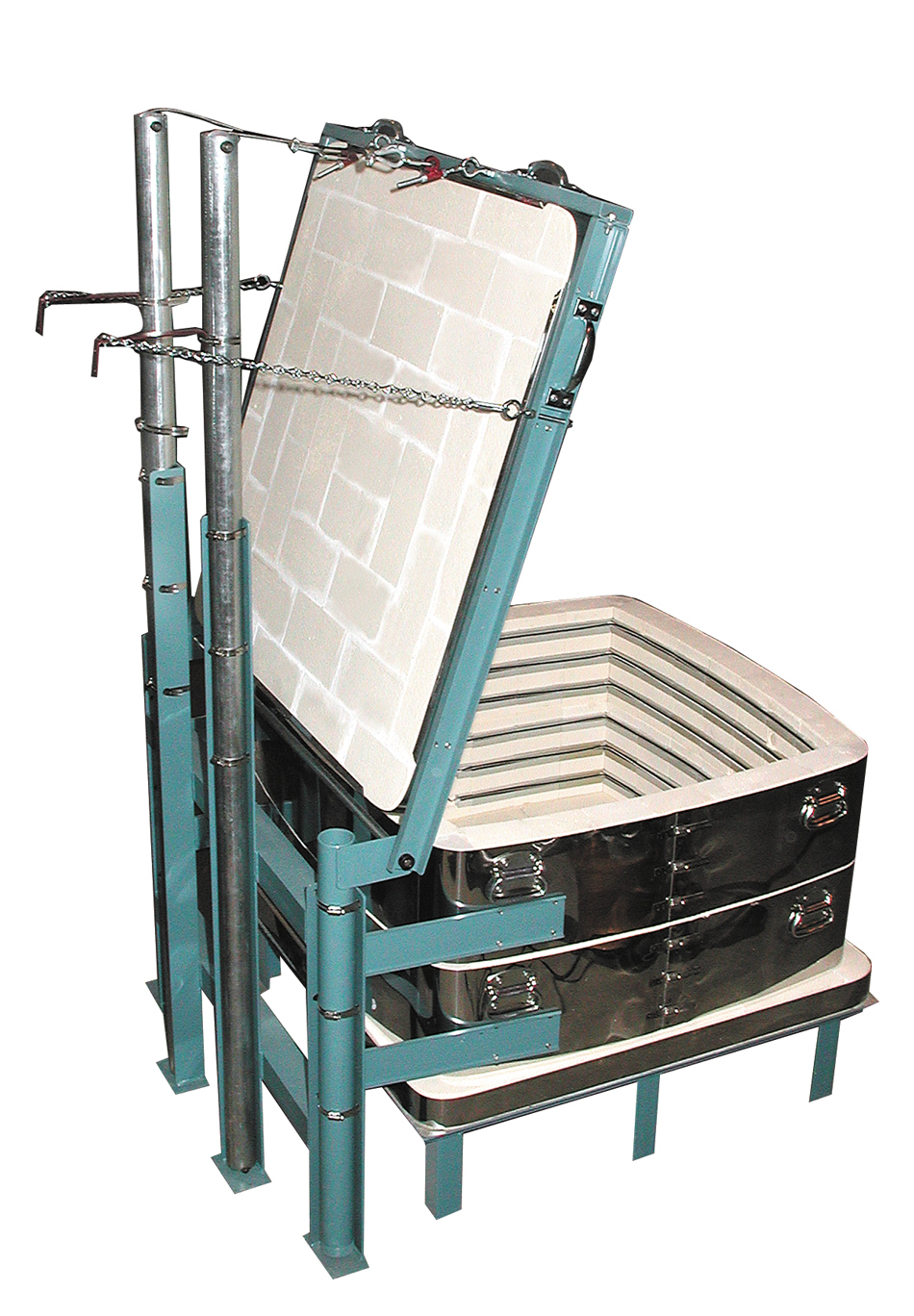

The hinge is adjustable for different height kins
Spring-Loaded Lid For Easy Opening and Gentle Closing of DaVinci
