Bell-Lift Kilns

Testimonials

Easy-to-Load Production Kilns

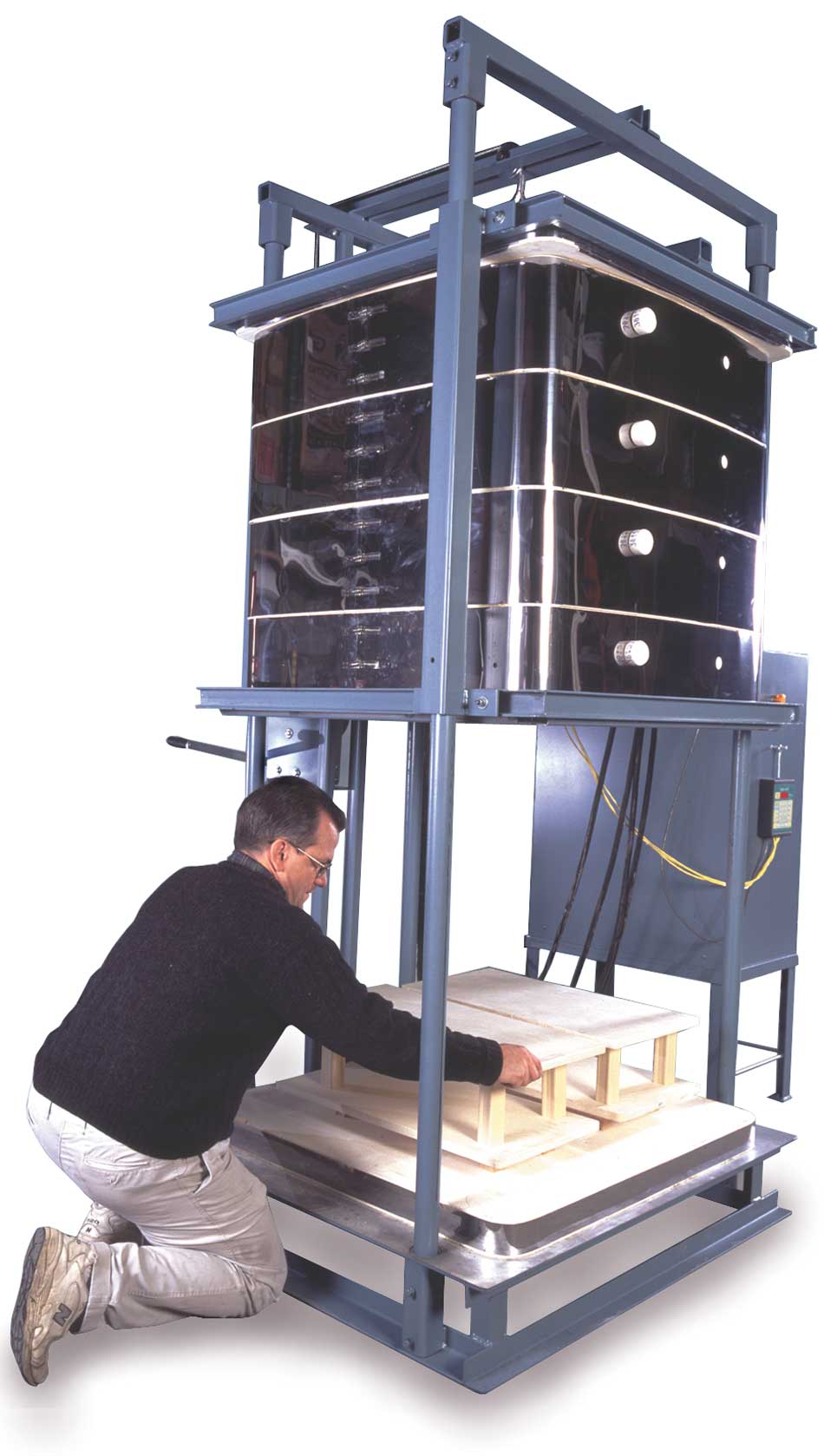

DaVinci Bell-Lift kilns can be loaded from all four sides. The temperature uniformity is unsurpassed.  They are available on the X3200 Series (30-1/2 square) and T3400 series (30-1/2" x 43-1/2 rectangular). The kiln sections and top are held together as one unit with a metal support frame. This unit is lifted up with a ratcheted hand winch mounted on the external frame. There are manual safety pins that lock the kiln in place when the kiln is fully raised. The support frame is made from heavy duty welded parts that are easily assembled on site so that the system can be easily broken down for shipping. An 18", 27" or 36" high kiln (interior) will be 105" high, and a 45" high kiln will be 123" high.

See the T3400 and TB3400 Series and X3200 and XB3200 series on the DaVinci Square/Rectangular Kiln Series page for all the models that can be ordered with the Bell-Lift System. Powered bottoms can also be used. The price of this option is $4995 added to any of the base prices of the available DaVinci models.

Features

Durability

Hard Ceramic Element Holders Make L&L Kilns More Durable
Durability, Repairability, Better Heat Transfer. The smooth, hard surface of the inside ceramic channel allows the elements to expand and contract freely. No pins! The dense ceramic holders extend element life because they do not insulate the hot elements from the kiln interior.
Strong Arched Sides with Extra Airspace (DaVinci)
Arched sides on DaVinci kilns are very strong and promote good air circulation
Thermocouple Protection Tubes
Mullite protection tubes extend thermocouple life and keep kiln clean. The mullite protection tube keeps the metal oxides of the thermocouple tip from dropping off and contaminating your work.
Welded Angle Iron Stand (DaVinci)
Welded heavy-duty stand supports heavy loads. Alumized top sheet reflects heat.
Molded Ceramic Industrial-Grade Element Connection Blocks
Industrial grade ceramic terminal blocks make changing elements easy.
Thick 8 Gauge Thermocouples
Thick 8 gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Proprietary Reflective Coating Hardens & Seals Brick
Special brick coating hardens and seals brick for durability and cleaner operation.
Corrosion Resistant Case
Corrosion resistant materials and methods result in a long-lasting kiln.
Extra Case Clamps
Three case clamps per 9" high kiln section are redundant safety for your L&L kiln.

Performance

Automatic Zone Control
Zone control gives you the utmost in controllable temperature uniformity. The DynaTrol separately measures temperatures in the bottom, middle and top of the kiln and automatically adjusts the heat output of three zones during the entire firing.
DynaTrol Multi-Program Zone Control
DynaTrol with 4 Easy-Fire programs (Slow Bisque, Fast Bisque, Slow Glaze, Fast Glaze), 6 custom programs, PreHeat, Delay, Program, Segment Review, and Diagnostics. Zone control included on most kilns.
Thermal Ceramics Firebrick
K23 firebrick combines good insulation with strength

Ease of Use

Bell-Lift System for DaVinci Kilns
Load your DaVinci kiln from all four sides. Available on T3400 and X3200 Series.
Solid Wide-View Peephole Plugs
Solid large non-tapered peepholes allow a wider view into the kiln.

Support

Superior Technical Support
The combined experience at L&L Kilns in kilns, ceramics, electrical engineering and process engineering is unsurpassed. We work as a team to help you get you answers and help.
Standard Three-Year Limited Warranty
Most L&L Kilns have a three-year limited warranty.

Serviceability

Sectional Kiln Construction for DaVinci Kilns
Sectional kiln construction make DaVinci kilns easy to move, set up and disassemble for maintenance.
Floor-Standing Panel Away from Kiln (DaVinci)
The control panel is mounted on a stand away form the kiln.
Floor standing Panel with Industrial Wiring (DaVinci)
DaVinci Panels are wired to industrial standards with good clean wire layout.
Reversible Bottoms
The bottom can be easily reversed in case of a firing mishap.

Safety

Listed to UL499 Standard by MET
Most L&L kilns are MET listed to UL499 standards. Listed kilns include Easy-Fire. Jupiter. DaVinci, School-Master, Liberty-Belle. Hercules & Easy-Load kilns areMET-Us Listed for US only.
Mercury Free Power Contactors
Power Relays are mercury-free to comply with increasing regulation and concern about mercury in schools
On-Off Switch and Panel Fuse
All L&L Kilns come with an on-off switch
